Pipe Inspection Camera Pics32330

Pipe Inspection Camera System PICS32330

MODEL : PICS32330
WARRANTY : 1 Year
Stellar Instruments
AED 9,000.00 - AED 9,000.00
AED 9,000.00
AED 9,000.00 - AED 9,000.00
AED 9,000.00
(Including VAT)

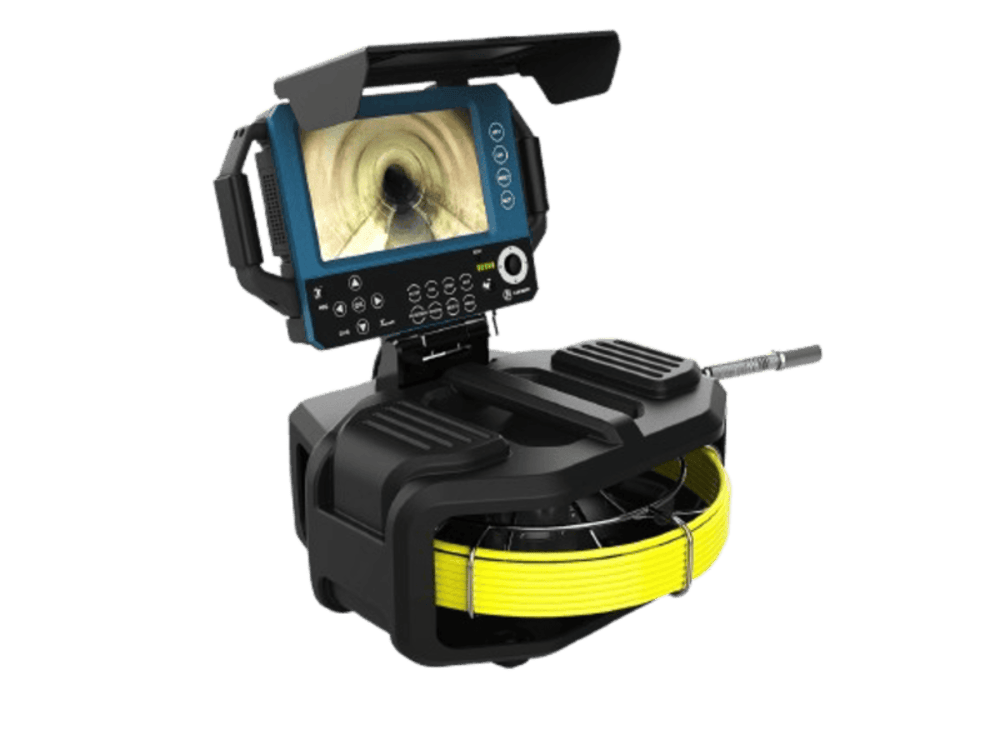

Pipe Inspection Camera System PICS32330

The Pipe Inspection Camera System (PICS32330) is a compact and high-performance inspection solution designed for detailed inspection of pipes, ducts, and drainage systems. Equipped with a 2 MP self-leveling camera head and an 8-inch HD LCD display, the system delivers clear, stable, and high-resolution images, enabling accurate identification of blockages, cracks, and structural defects.

Designed for industrial, municipal, and residential applications, this system offers excellent maneuverability in narrow pipelines, reliable performance in wet environments, and extended operating time. Its lightweight and portable design makes it ideal for on-site inspections with precise and efficient diagnostics.

Features:

  • 2 MP self-leveling camera head (Ø23 mm)
  • 8-inch HD LCD display (1280 × 800)
  • IP68 waterproof camera for wet inspections
  • 9 adjustable white LEDs for clear visibility
  • 30 m push cable with digital meter counter
  • Video & audio recording with USB storage
  • 8000 mAh rechargeable battery for long operation
  • Lightweight, portable design for field use

Product Name

Pipe Inspection Camera System

Model

PICS32330

Display Size

8" HD LCD Screen

Display Resolution

1280 × 800

Video Format

AVI

Recording

Video and audio recording

Storage

USB storage device (Standard 16 GB)

Camera Head Size

Ø23 mm × 195 mm

Camera Resolution

1920 × 1080 (Full HD)

Camera Function

Self-leveling

Waterproof Rating

IP68

Lighting

9 pcs high-intensity adjustable white LEDs

Cable Length

30 m

Cable Diameter

Ø5.2 mm

Field of View

90° wide angle

Distance Measurement

Digital on-screen meter counter

Power Supply

8000 mAh rechargeable Li-ion battery pack

Operating Temperature

-20 °C to +50 °C

Operating Humidity

<95% RH

Dimensions

48 × 44 × 43 cm

Weight

Approx. 9 kg

Data-Sheet : Download

1. What is the Pipe Inspection Camera System PICS32330 used for?

It is used for inspecting pipes, drainage lines, ducts, and sewer systems to detect blockages, cracks, corrosion, and structural defects in industrial, municipal, and residential applications.

2. Does the camera provide stable image orientation inside pipes?

Yes, the system features a self-leveling camera head, which automatically maintains an upright image orientation during inspection.

3. Is the camera suitable for wet or underwater conditions?

Yes, the camera head is rated IP68 waterproof, making it suitable for use in wet and submerged environments.

4. What is the image and video recording capability?

The system supports video and audio recording in AVI format, with data stored on a USB storage device (standard 16 GB).

5. How long can the system operate on a full battery charge?

The built-in 8000 mAh rechargeable Li-ion battery provides more than 6 hours of continuous operation, depending on usage conditions.

6. How is the inspection distance measured during operation?

The system includes a digital meter counter displayed on the screen, allowing accurate real-time tracking of the cable length inside the pipe.
