Portable Ultrasonic Flowmeter UFM100

SKU : USUFM100
MAKE : STELLAR INSTRUMENTS
MODEL : UFM100
WARRANTY : 1
AVAILABILITY : IN STOCK
Original price AED 5,400.00 - Original price AED 5,400.00
Original price
AED 5,400.00
AED 5,400.00 - AED 5,400.00
Current price AED 5,400.00
(Including VAT)

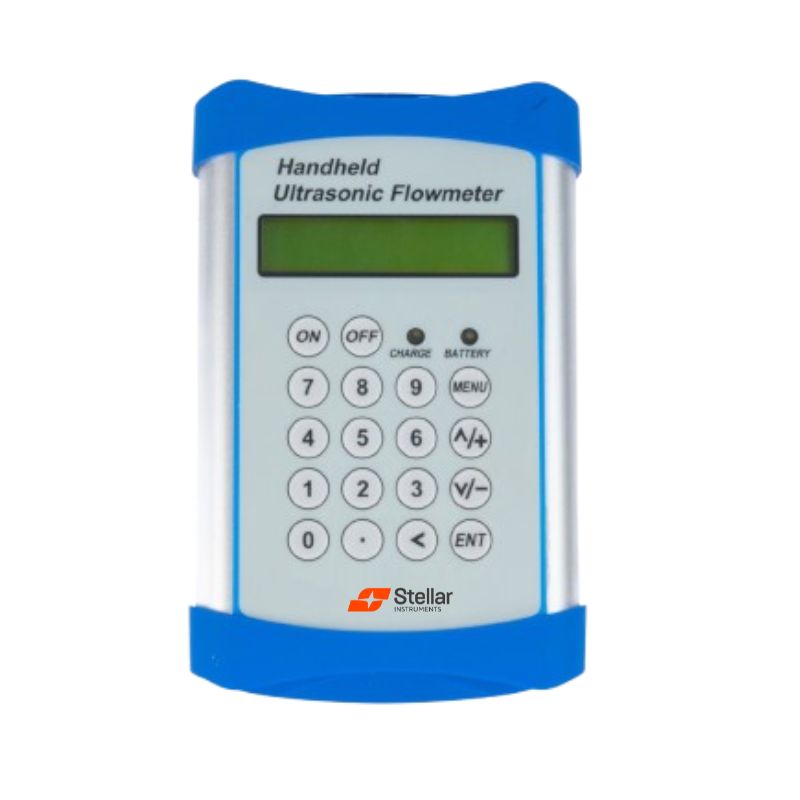

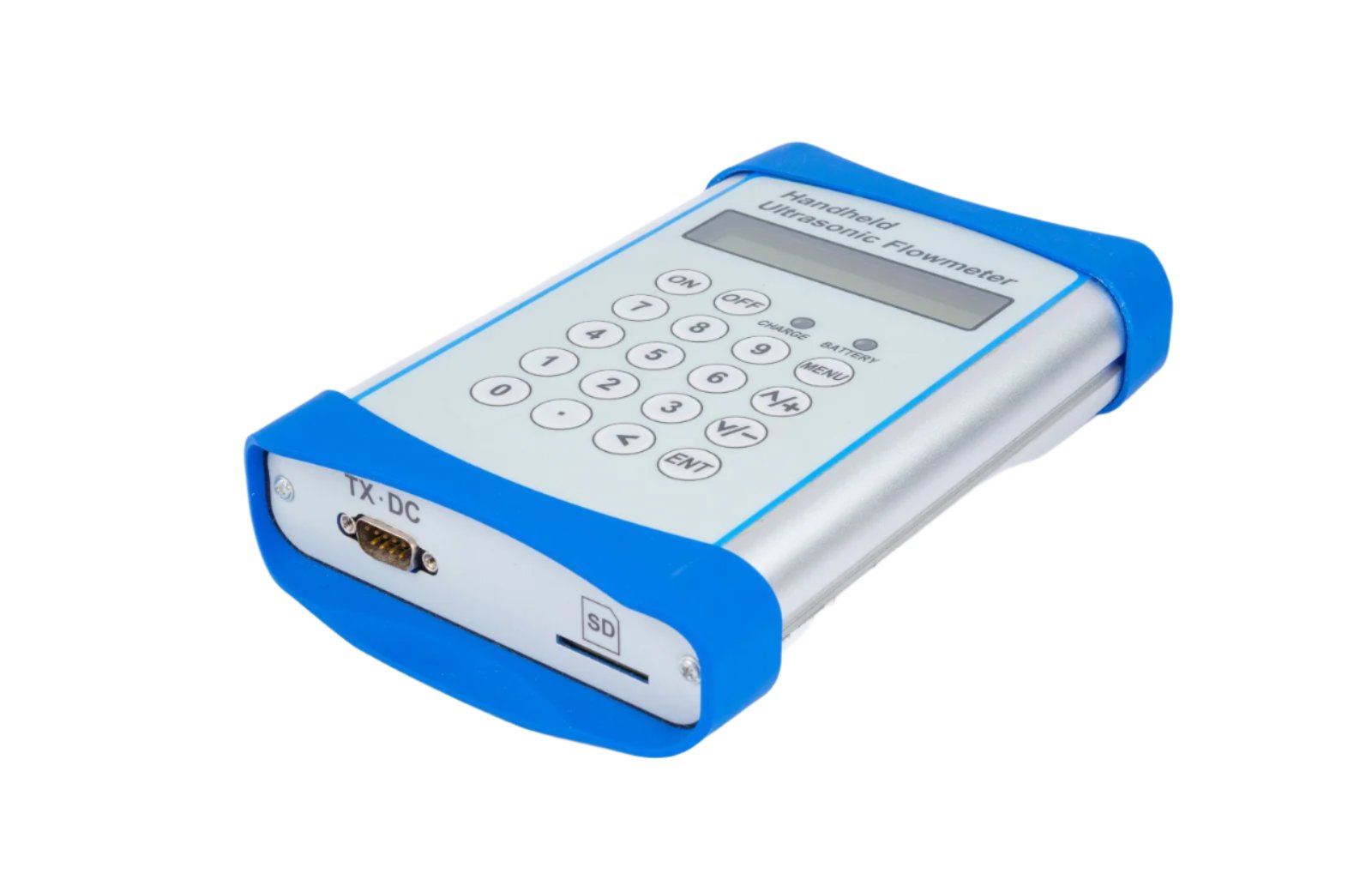

Portable Ultrasonic Flowmeter UFM100

UFM100 portable ultrasonic flowmeter measures the flow rate of a liquid by using ultrasound technology. It works by sending ultrasonic signals through the fluid and measuring how the flow of the fluid affects the speed of these signals.Typically ultrasonic flow meter is a non-invasive methods of measurement and uses clamp-on transducers that attach to the outside of the pipe, allowing for flow measurement without altering the pipe structure or cutting into it

Ultrasonic flowmeters are popular because they are non-intrusive, meaning they don’t need to be placed inside the pipe, making them ideal for applications where minimal disruption to the fluid flow is needed. They are widely used in industries such as water and wastewater management, oil and gas, and chemical processing.

UFM100 works on pipe material carbon steel, stainless steel, cast iron, ductile iron, copper, PVC, aluminum, asbestos, fiberglass.

Measuring Range DN15 to DN6000
Liquid Temperature 30°C to 90°C
Accuracy ±1% of reading
Power Supply 220V AC / 24V DC
Output MODBUS RTU RS485 (optional)
Repeatability ±0.2%
Flow Units Cubic meters, liters, USA gallon, cubic feet
Supported Liquids Water, seawater, industrial sewage, oils, etc.
Power Consumption <1.5W

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What types of liquids can be measured?

UFM100 measures clean liquids, including water, oils, and chemical fluids.

What is the measurement accuracy?

It has a measurement accuracy better than ±1%.

What is the pipe size range for measurement?

The UFM100 can measure pipes ranging from DN15 to DN6000.

Is it compatible with RS485 communication?

Yes, MODBUS RTU RS485 is available as an option.

What is the power consumption?

The meter consumes less than 1.5W.

What is the repeatability of the measurements?

The repeatability is ±0.2%.
