Primary Current Injection Test System

SKU : PCU1-SP MK3
MAKE : T&R TEST EQUIPMENT
MODEL : PCU1-SP NLU5000

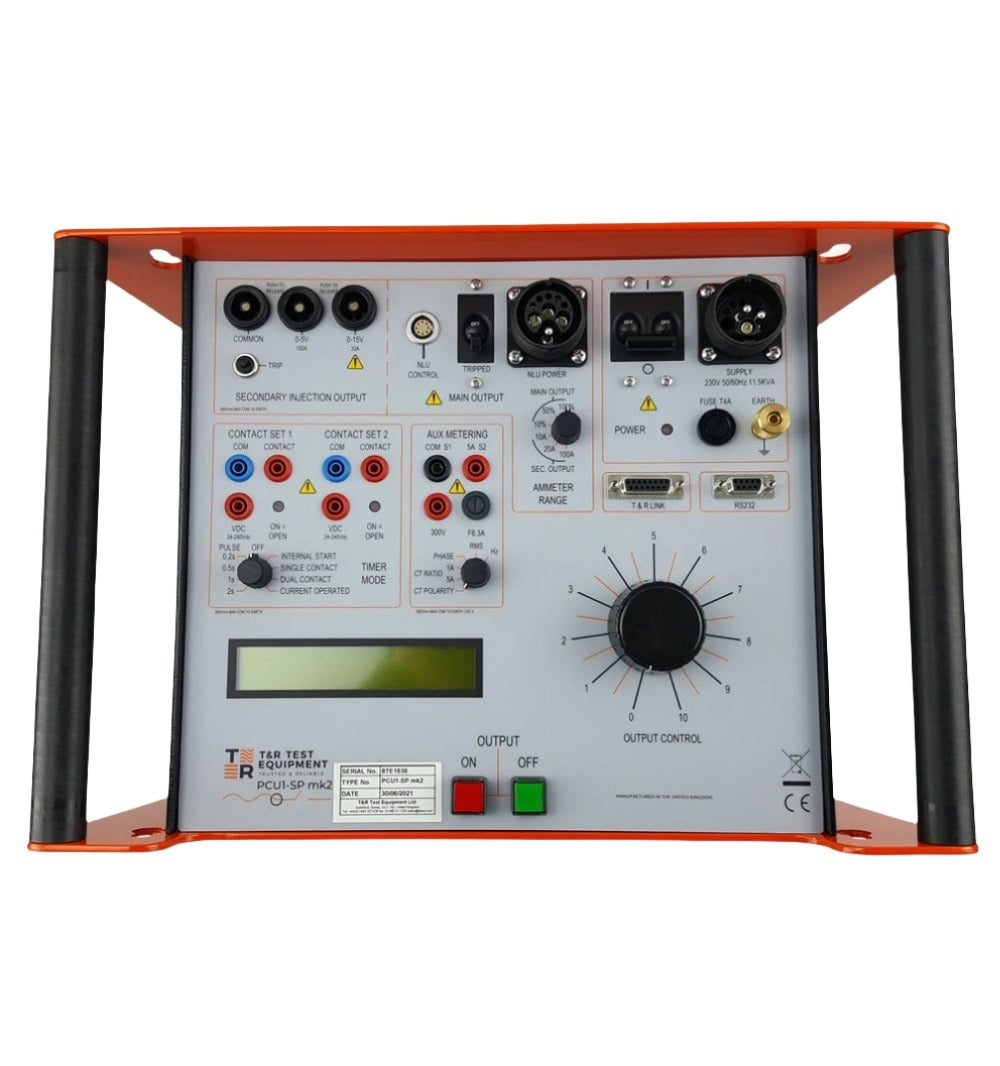

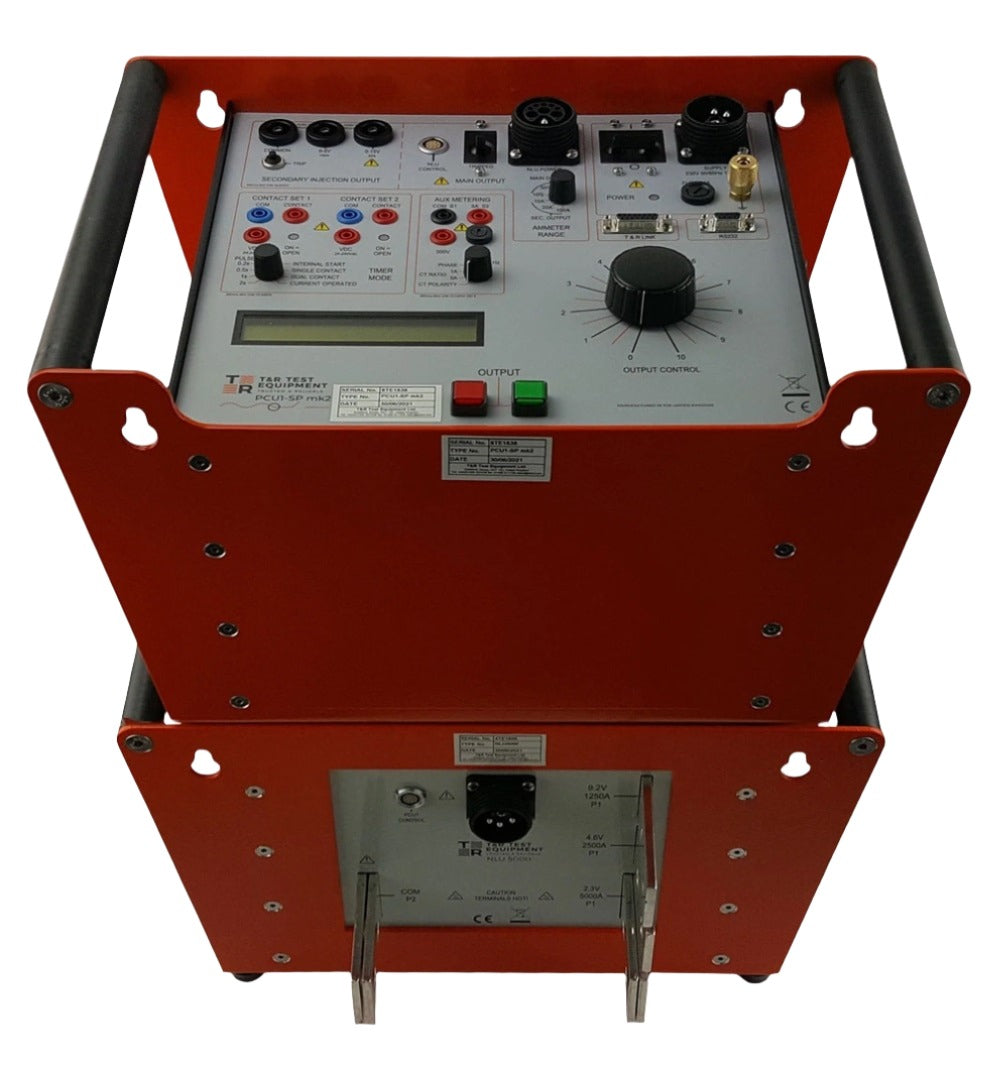

Primary Current Injection Test System

The PCU1-SP Mk3 is a versatile primary current injection test system, ideal for stability and circuit breaker testing, with direct-reading CT ratio and polarity tests.

  • 5kA maximum output current (higher overload currents for 2s)
  • Multi-function digital timing system
  • Digital true RMS memory ammeter
  • Solid state switching
  • 200A, 2000A and 5000A loading units
  • Three range outputs on NLU2000 & NLU5000 Loading Units
  • Rugged, compact design
  • Optional trolley mounting of system
  • Secondary injection up to 100A
  • Auxiliary metering input
  • Direct reading CT ratio and polarity
Weight 10 kg
Dimensions 5 × 5 × 5 cm
Current

AC Current 1500A
DC Current 1500A

Voltage

AC Voltage 750V
DC Voltage 1000V

Frequency

40.000Hz

Capacitance

40.00mF

Resistance

40.000MΏ

Temperature

K-type
