PV204 Digital Solar Meter

SKU : SPMHTPV204
MAKE : HT-INSTRUMENTS
MODEL : PV204
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 1,200.00
AED 1,200.00 - AED 1,200.00
Current price AED 1,200.00
(Including VAT)

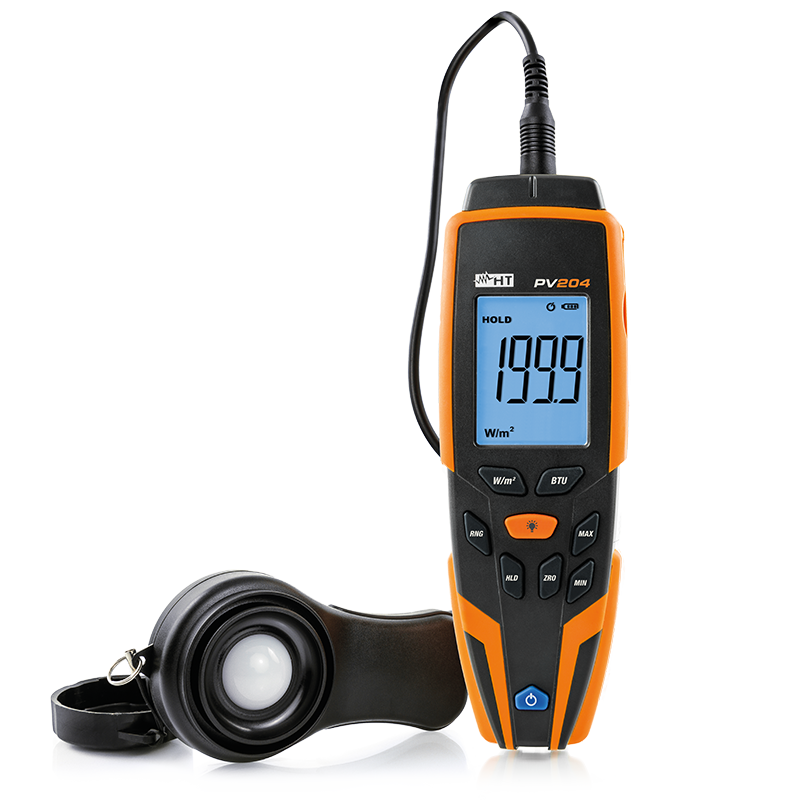

PV204 Digital Solar Meter

The PV204 Mobile Digital Solar Meter is a high-precision instrument designed to measure solar radiation accurately. With advanced silicon photodiode technology, it provides reliable measurements in W/m² and BTU/ft²*h, making it essential for solar energy professionals, environmental monitoring, and research applications. This lightweight and portable device features a backlit LCD display, low battery indication, and IP40-rated protection for durability in various environments. The PV204 ensures optimal performance with its ergonomic design and extended battery life, ideal for field and laboratory use.

Features

  • Dual Unit Measurement: Measures solar radiation in W/m² and BTU/ft²*h.
  • High Accuracy: Advanced silicon photodiode sensor ensures precise readings.
  • Backlit LCD Display: Clear visibility with a 3 ½ digit display and decimal point.
  • Long Battery Life: Operates up to 180 hours with backlight off.
  • Portable Design: Compact and lightweight for fieldwork and portability.
  • IP40 Protection: Durable casing offers resistance against dust and environmental stress.
  • Low Battery Indicator: Alerts when the battery requires replacement.
Solar Radiation (W/m²)
Range

 0.1 to 1999



Resolution

 0.1 W/m² (0.1 to 199.9), 1 W/m² (200 to 1999)



Accuracy

 ±10 W/m² or ±5% of reading



Solar Radiation (BTU/ft²*h)
Range

 0.1 to 634



Resolution

 0.1 BTU/ft²h (0.1 to 63.4), 1 BTU/ft²h (64 to 634)



Accuracy

 ±3 BTU/ft²*h or ±5% of reading



Power Supply

 1x 9V alkaline battery (IEC6F22)



Battery Life

 60 hours (backlight ON), 180 hours (backlight OFF)



Dimensions
Instrument

 190 x 65 x 45 mm



Sensor

 110 x 60 x 35 mm



Cable Length

 1.0m



Weight

 235 g



Protection Rating

 IP40



Operating Temperature

 5°C to 40°C



Storage Temperature

 -10°C to 60°C



Altitude

 Maximum 2000m



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What units does the PV204 measure solar radiation in?

The PV204 measures solar radiation in W/m² and BTU/ft²*h.

What is the battery life of the PV204?

It operates for up to 180 hours with the backlight off.

Can the device be used outdoors?

Yes, the PV204 is portable and features IP40-rated protection for durable outdoor use.

What is the accuracy of the PV204 in W/m²?

The accuracy is ±10 W/m² or ±5% of the reading.

Does the PV204 have a low battery indicator?

Yes, the display shows a low battery symbol when the battery needs replacement.

What is the operating temperature range?

The device operates within 5°C to 40°C.
