IV Curve Tracer PVPM1040X 40kW 1000V 40A

SKU : PVPM1040X
MAKE : PVE PHOTOVOLTAIK ENGINEERING
MODEL : PVPM1040X
WARRANTY : 1 Year
AVAILABILITY : IN STOCK

Lead time : 2 Weeks

Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 45,000.00
AED 45,000.00 - AED 45,000.00
Current price AED 45,000.00
(Including VAT)

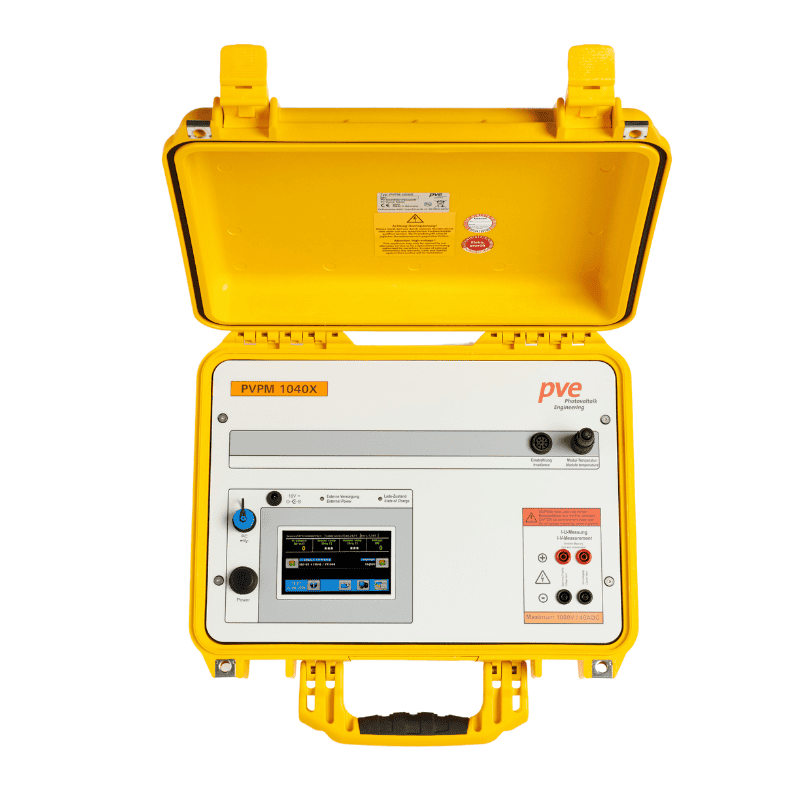

IV Curve Tracer PVPM1040X 40kW 1000V 40A

IV-Curve Measurement Device for PV modules and strings up to 40kW (max. 1000V, 40A)

The PVPM1040X is a high-performance I-V curve tracer designed for photovoltaic module testing. Engineered for precision, it measures the I-V characteristics of solar modules and strings, calculating critical metrics like peak power, series resistance, and parallel resistance. Its robust design ensures reliable field testing, while its intuitive operation simplifies on-site photovoltaic performance evaluation. Ideal for quality control, research, and development, the PVPM1040X empowers users with accurate diagnostics for solar energy systems.

Features

  • Accurate I-V Curve Tracing: Ensures precise measurements for photovoltaic modules and arrays.
  • Integrated Solar Module Database: Streamlines operations with built-in data management.
  • Portable and Durable Design: Lightweight, IP67-rated watertight housing for field testing.
  • High-Resolution Display: Color TFT screen for clear, real-time data visualization.
  • Long Battery Life: Up to 8 hours of continuous operation with rechargeable lithium-ion batteries.
  • Seamless Data Transfer: USB interface for efficient data export and analysis.

IV Curve

Voltage Range

 25 / 100 / 500 / 1000 V DC



Current Range

 2 / 5 / 10 / 20 A DC



Temperature Measurement

 -40°C to +120°C

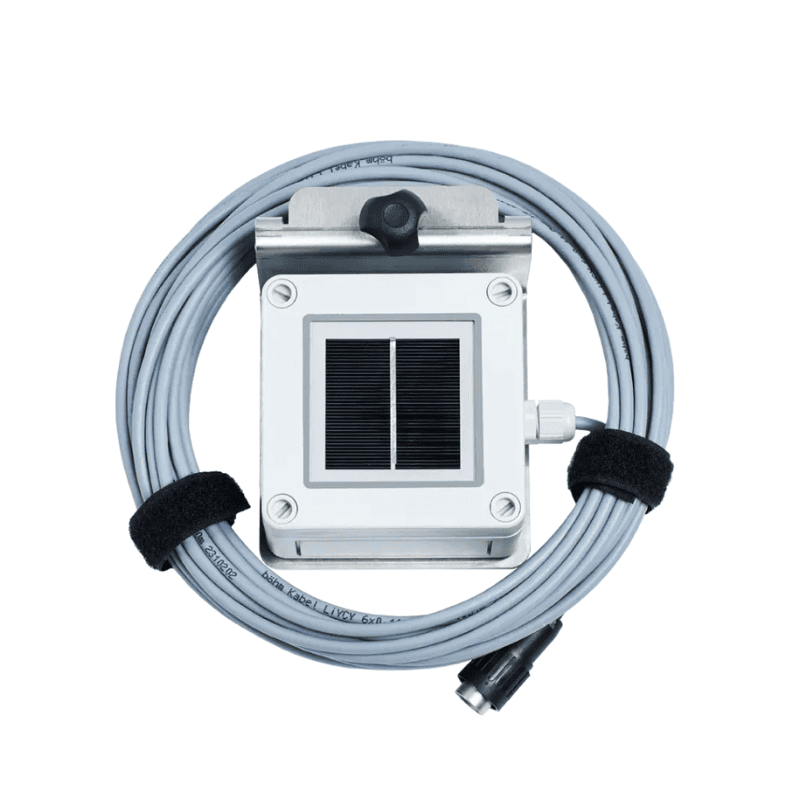

Irradiance Measurement

 0 - 1300 W/m²



Accuracy

 ±5% for peak performance



Display

 480 x 272-pixel color TFT with LED backlight



Dimensions

 40.6 cm x 17.5 cm x 33 cm



Weight

 Approximately 7.7 kg



Operating Temperature

 0°C to 50°C



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the maximum voltage this device can measure?

The PVPM1040X can measure up to 1000 V DC.

Is the device suitable for outdoor testing?

Yes, the IP67-rated housing makes it ideal for outdoor field testing.

Can it measure multiple strings simultaneously?

No, the device is designed to measure one string or module at a time.

What is the storage capacity for measurements?

The device can store several thousand measurements with its internal flash memory.

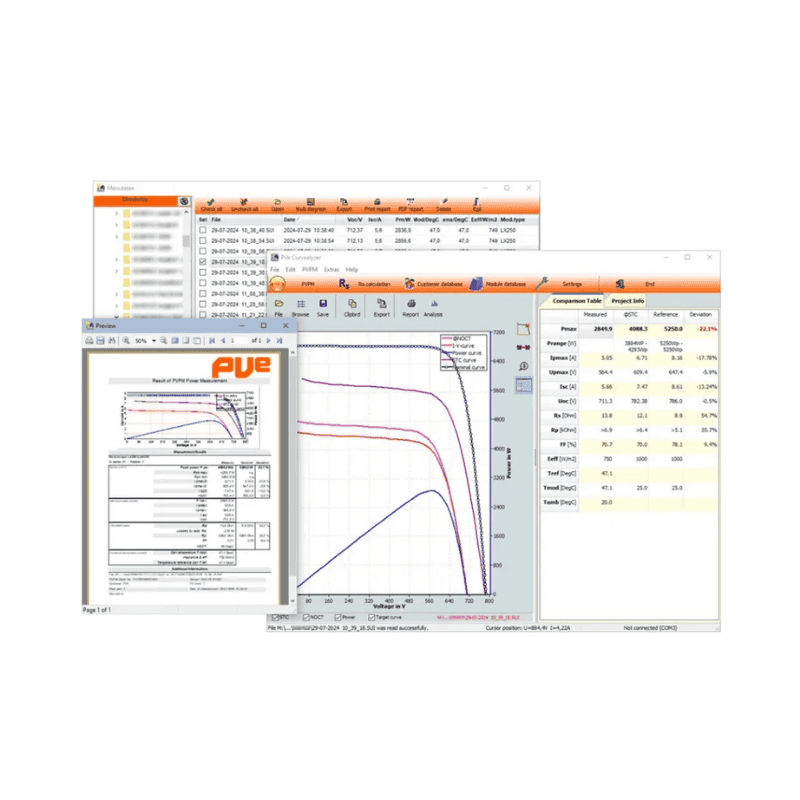

Does it include software for report generation?

Yes, the included software supports data analysis and report generation.

What is the warranty period for this device?

The PVPM1040X comes with a 24-month warranty.
