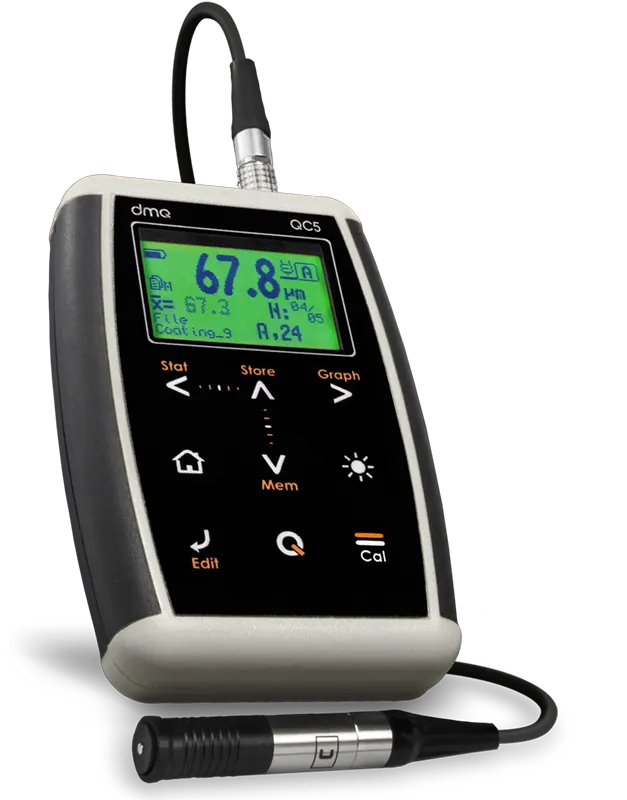

QC5 Series Coating Thickness Gauge with advanced probes

QC5 Series Advanced Coating Thickness Gauges

SKU : DMQQC5
MAKE : DMQ
MODEL : QC5
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
DMQ

QC5 Series Advanced Coating Thickness Gauges

The QC5 Series Advanced Coating Thickness Gauges deliver precise and reliable measurements for coatings on ferrous and non-ferrous substrates. Equipped with innovative features like automatic base type detection, multiple probe options, and a 9-mode calibration system, the QC5 Series ensures accuracy and adaptability for various industrial applications. With a memory capacity of up to 32,000 readings, USB connectivity, and compatibility with the dmq DataCenter software, these gauges provide advanced data analysis and reporting capabilities, making them ideal for quality control and production processes.

Features

  • Versatile Applications: Measures non-metallic coatings on non-ferrous bases and non-magnetic coatings on ferrous bases.
  • Automatic Base Detection: Streamlines measurement on combined materials.
  • Advanced Probes: Includes standard, mini, and extended range probes for varied thickness and geometry.
  • High Accuracy: Precision up to ±1-3% or ±2.5µm for standard probes.
  • Memory Capacity: Stores up to 32,000 readings for efficient data management.
  • Real-Time Graphics and Statistics: Provides instant analysis and visual data representation.
  • 9 Calibration Modes: Customizable settings for superior accuracy.
  • USB Connectivity: Seamless data transfer to PCs using dmq DataCenter software.
  • Durable Design: Lightweight, compact, and housed in an IP-rated enclosure.
  • Battery Life: Up to 60 hours of continuous operation.
Probe Options
Standard Range 0 to 1500μm (0 to 59mil).
Mini Probe 0 to 750μm (0 to 29.5mil).
Extended Range 0 to 5000μm (0 to 197mil).
Accuracy ±1-3% or ±2.5µm (±0.1mil).
Resolution
0.1μm (up to 199.9μm).
1μm (200 to 5000μm).
Memory 32,000 readings.
Connectivity USB interface for data export.
Power Supply 2 x AA batteries (60 hours of use).
Operating Standards ISO 2178, ISO 2360, ASTM D7091, ASTM E376, ASTM B244.
Dimensions 79 x 117 x 24 mm (3.11 x 4.6 x 0.95 in).
Weight 182 g (0.40 lbs).
  • Standard probe with CalTag technology.
  • Calibration kit including base and 3 shims.
  • USB cable for PC connectivity.
  • dmq DataCenter software on a USB drive.
  • High-impact carrying case.
  • User manual and certificate of conformity.
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What types of coatings can the QC5 Series measure?

It measures non-magnetic coatings on ferrous bases and non-metallic coatings on non-ferrous bases.

Does it support automatic base type detection?

Yes, it automatically identifies ferrous and non-ferrous substrates.

What is the memory capacity of the QC5 Series?

It can store up to 32,000 readings for comprehensive data management.

Is the QC5 suitable for measuring curved surfaces?

Yes, mini probes and the "V" cut probe are available for curved or complex geometries

How long does the battery last?

The QC5 operates for up to 60 hours on 2 AA batteries.

What software is included for data management?

It includes dmq DataCenter software for data analysis, graphing, and reporting.
