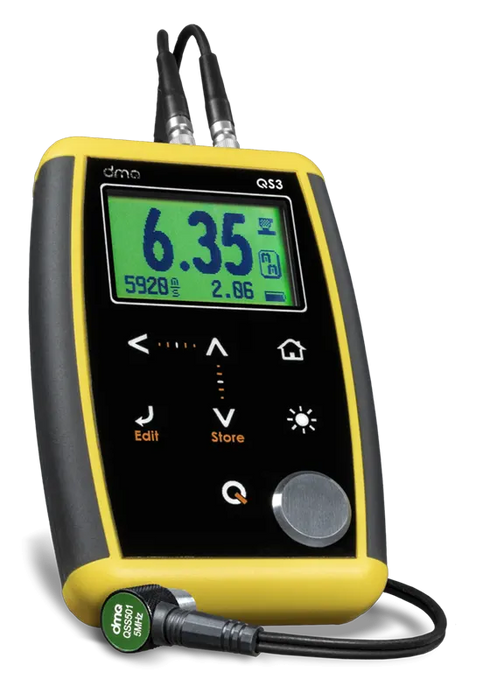

The QS3 Series Ultrasonic Thickness Gauges provide precise, non-destructive measurements for a variety of materials, including steel, glass, plastic, and ceramics. Designed for durability and accuracy, these gauges are equipped with features like integrated speed tables, automatic calibration, and memory for 5,000 readings. Compact and lightweight, the QS3 Series is ideal for industrial applications such as tanks, tubes, plates, and pressure vessels, offering reliable performance at an affordable price.
| Measurement Range | |
| Standard | 0.6 mm to 500 mm (depending on transducer)
|
| Resolution | 0.01 mm
|
| Transducers | 2 MHz for large thicknesses (4 to 500 mm)
|
5 MHz for general applications (1 to 300 mm)
| |
5 MHz high-temperature transducers (up to 350°C, range 1 to 250 mm)
| |
7 MHz for thin walls and curved surfaces (0.8 to 70 mm)
| |
| Memory | 5,000 readings
|
| Power Supply | 2 AA batteries, 60 hours of operation
|
| Weight | 182 g (0.40 lbs)
|
| Dimensions | 79 x 117 x 24 mm
|
| Standards | ASTM E797
|
The QS3 Series Ultrasonic Thickness Gauges provide precise, non-destructive measurements for a variety of materials, including steel, glass, plastic, and ceramics. Designed for durability and accuracy, these gauges are equipped with features like integrated speed tables, automatic calibration, and memory for 5,000 readings. Compact and lightweight, the QS3 Series is ideal for industrial applications such as tanks, tubes, plates, and pressure vessels, offering reliable performance at an affordable price.
| Measurement Range | |
| Standard | 0.6 mm to 500 mm (depending on transducer)
|
| Resolution | 0.01 mm
|
| Transducers | 2 MHz for large thicknesses (4 to 500 mm)
|
5 MHz for general applications (1 to 300 mm)
| |
5 MHz high-temperature transducers (up to 350°C, range 1 to 250 mm)
| |
7 MHz for thin walls and curved surfaces (0.8 to 70 mm)
| |
| Memory | 5,000 readings
|
| Power Supply | 2 AA batteries, 60 hours of operation
|
| Weight | 182 g (0.40 lbs)
|
| Dimensions | 79 x 117 x 24 mm
|
| Standards | ASTM E797
|
