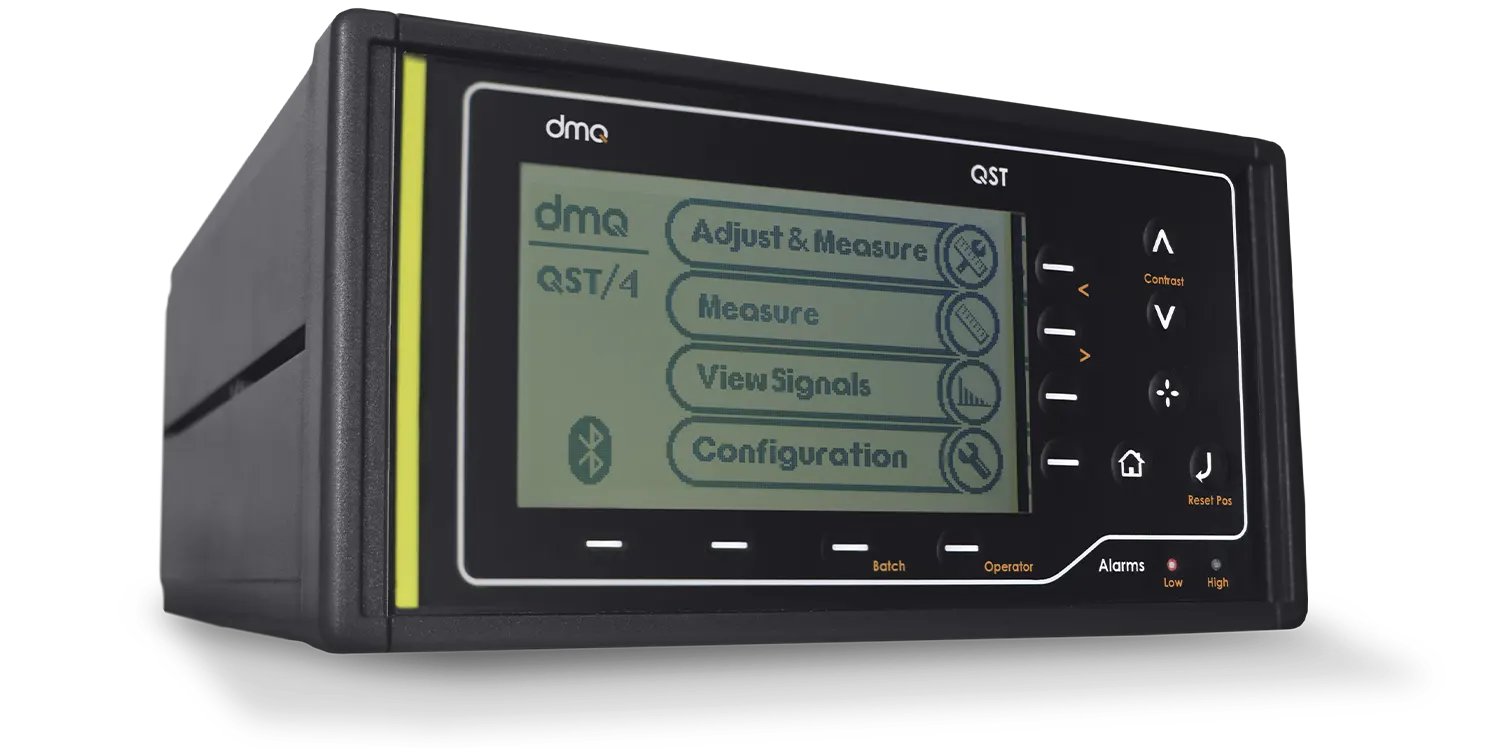

QST Series Thickness Gauge for Pipes in Production

The QST Series Thickness Gauge is a robust and modular system designed for continuous, non-destructive measurement of plastic pipe wall thickness during production. It enhances raw material optimization and ensures 100% quality control, making it an essential tool for manufacturers of HDPE, PVC, and FRP pipes. With its ability to measure up to four channels simultaneously, real-time data acquisition, and advanced reporting features, the QST Series ensures precise monitoring for a wide range of pipe diameters and wall thicknesses.

Features

• Multichannel Capability: Measures up to four channels simultaneously for efficient production monitoring.
• Wide Measurement Range: Supports wall thicknesses from 0.5 mm to 200 mm.
• Advanced Transducers: Includes 2 MHz for thick walls and 5 MHz for small-to-medium pipes.
• Real-Time A-Scan Mode: Provides detailed adjustment and visualization of measurement data.
• Robust Construction: Compact and durable electronic unit suitable for industrial environments.
• Bluetooth and RS232 Connectivity: Enables seamless data transfer and control via PC.
• Integrated Alarms: Visual and relay output alerts for minimum and maximum thickness thresholds.
• Data Logging: Records thickness data by time or distance, ensuring accurate production tracking.
• User-Friendly Interface: Features an adjustable backlit display and intuitive dome touch keyboard.
• dmq DataCenter Software: Comprehensive PC software for data storage, reporting, and real-time control.
