RIDGID SeekTech SR-24LE

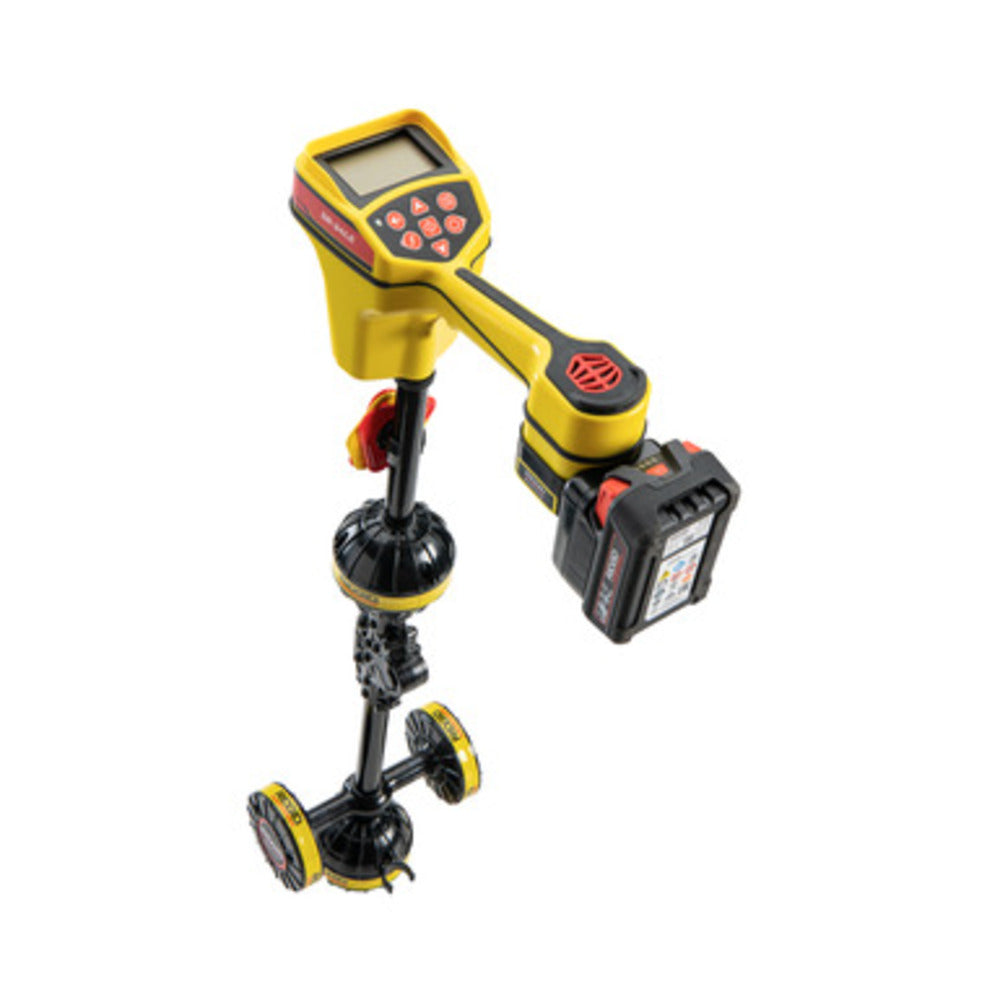

RIDGID SeekTech SR-24LE Line Locator with Bluetooth and GPS

SKU : SISR24LE
MAKE : RIDGID
MODEL : SR-24LE
WARRANTY : 1 Year
Ridgid
AED 22,600.00 - AED 22,600.00
AED 22,600.00
AED 22,600.00 - AED 22,600.00
AED 22,600.00
(Including VAT)

RIDGID SeekTech SR-24LE Line Locator with Bluetooth and GPS

The RIDGID SeekTech SR-24LE Line Locator is a professional precision utility locating instrument designed to accurately detect and trace underground cables, pipes, and utility lines. Equipped with integrated GPS and Bluetooth® Low Energy technology, it enables wireless data transfer to smartphones, tablets, and external GPS devices for utility mapping and GIS applications.

The SR-24LE features an omnidirectional antenna system that captures the complete signal field for faster signal acquisition and improved locating accuracy. Its intuitive mapping display shows the estimated utility position, direction, and depth, while audio and visual alerts help identify signal distortion and reduce marking errors.

Designed for demanding field environments, the SR-24LE is ideal for construction, telecommunications, municipal utilities, and infrastructure projects requiring reliable underground utility detection, documentation, and mapping.

Features:

  • Integrated GPS for utility mapping and documentation.
  • Bluetooth® Low Energy for wireless data transfer.
  • Omnidirectional antennas for accurate locating.
  • Mapping display with depth and signal information.
  • Supports active, passive, and sonde locating modes.
  • Frequency range: 10 Hz–35 kHz.
  • Compatible with RIDGIDtrax mapping software.
  • Rugged design for professional field use.
Product TypeUnderground Utility Line Locator
BrandRIDGID
ModelSeekTech SR-24LE
Locating TechnologyElectromagnetic Utility Locating
ApplicationLocating underground cables, pipes, and utility lines
Frequency Range10 Hz – 35 kHz
Locating ModesActive, Passive Power, Passive Radio, Sonde
Active Trace Frequencies128 Hz, 1 kHz, 8 kHz, 33 kHz
Passive Power Frequencies50 Hz, 60 Hz, Broadband (<4 kHz)
Sonde Frequencies16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
Antenna SystemOmnidirectional antenna array
Display TypeMapping LCD display
Depth MeasurementContinuous depth measurement
GPSIntegrated GPS for utility mapping
ConnectivityBluetooth® Low Energy
Wireless Data TransferSupports connection to mobile devices and GPS systems
Mapping CompatibilityRIDGIDtrax utility mapping application
User Programmable FrequenciesUp to 30 frequencies
Signal IndicatorsSignal strength, target line, guidance arrows, distortion alerts
Power SupplyRIDGID 18V rechargeable battery / battery adapter
Battery LifeExtended field operation with RIDGID 18V batteries
WeightApprox. 1.5 kg (3.3 lb)
Operating Temperature-20°C to 50°C (-4°F to 122°F)
ConstructionRugged field-ready design
Compatible AccessoriesRIDGID SeekTech transmitters and accessories
Main ApplicationsConstruction, utilities, telecom, surveying, and infrastructure mapping
SR-24LE-Datasheet : Download

1. What is the RIDGID SeekTech SR-24LE used for?

The SR-24LE is used to locate and trace underground cables, pipes, utility lines, and sondes.

2. What makes the SR-24LE different from the SR-20?

The SR-24LE adds integrated GPS and Bluetooth® connectivity for utility mapping and wireless data transfer.

3. Does the SR-24LE support GPS mapping?

Yes, the built-in GPS records location data for mapping and GIS applications.

4. What frequency range does the SR-24LE support?

It supports a frequency range of 10 Hz to 35 kHz for various locating applications.

5. Can the SR-24LE connect to mobile devices?

Yes, Bluetooth® Low Energy allows wireless connection with compatible devices and mapping applications.

6. What industries use the RIDGID SR-24LE?

It is commonly used in construction, utility maintenance, telecommunications, surveying, and infrastructure projects.

RIDGID SeekTech SR-24LE Line Locator with Bluetooth and GPS

The RIDGID SeekTech SR-24LE Line Locator is a professional precision utility locating instrument designed to accurately detect and trace underground cables, pipes, and utility lines. Equipped with integrated GPS and Bluetooth® Low Energy technology, it enables wireless data transfer to smartphones, tablets, and external GPS devices for utility mapping and GIS applications.

The SR-24LE features an omnidirectional antenna system that captures the complete signal field for faster signal acquisition and improved locating accuracy. Its intuitive mapping display shows the estimated utility position, direction, and depth, while audio and visual alerts help identify signal distortion and reduce marking errors.

Designed for demanding field environments, the SR-24LE is ideal for construction, telecommunications, municipal utilities, and infrastructure projects requiring reliable underground utility detection, documentation, and mapping.

Features:

  • Integrated GPS for utility mapping and documentation.
  • Bluetooth® Low Energy for wireless data transfer.
  • Omnidirectional antennas for accurate locating.
  • Mapping display with depth and signal information.
  • Supports active, passive, and sonde locating modes.
  • Frequency range: 10 Hz–35 kHz.
  • Compatible with RIDGIDtrax mapping software.
  • Rugged design for professional field use.
Product TypeUnderground Utility Line Locator
BrandRIDGID
ModelSeekTech SR-24LE
Locating TechnologyElectromagnetic Utility Locating
ApplicationLocating underground cables, pipes, and utility lines
Frequency Range10 Hz – 35 kHz
Locating ModesActive, Passive Power, Passive Radio, Sonde
Active Trace Frequencies128 Hz, 1 kHz, 8 kHz, 33 kHz
Passive Power Frequencies50 Hz, 60 Hz, Broadband (<4 kHz)
Sonde Frequencies16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
Antenna SystemOmnidirectional antenna array
Display TypeMapping LCD display
Depth MeasurementContinuous depth measurement
GPSIntegrated GPS for utility mapping
ConnectivityBluetooth® Low Energy
Wireless Data TransferSupports connection to mobile devices and GPS systems
Mapping CompatibilityRIDGIDtrax utility mapping application
User Programmable FrequenciesUp to 30 frequencies
Signal IndicatorsSignal strength, target line, guidance arrows, distortion alerts
Power SupplyRIDGID 18V rechargeable battery / battery adapter
Battery LifeExtended field operation with RIDGID 18V batteries
WeightApprox. 1.5 kg (3.3 lb)
Operating Temperature-20°C to 50°C (-4°F to 122°F)
ConstructionRugged field-ready design
Compatible AccessoriesRIDGID SeekTech transmitters and accessories
Main ApplicationsConstruction, utilities, telecom, surveying, and infrastructure mapping
SR-24LE-Datasheet : Download

1. What is the RIDGID SeekTech SR-24LE used for?

The SR-24LE is used to locate and trace underground cables, pipes, utility lines, and sondes.

2. What makes the SR-24LE different from the SR-20?

The SR-24LE adds integrated GPS and Bluetooth® connectivity for utility mapping and wireless data transfer.

3. Does the SR-24LE support GPS mapping?

Yes, the built-in GPS records location data for mapping and GIS applications.

4. What frequency range does the SR-24LE support?

It supports a frequency range of 10 Hz to 35 kHz for various locating applications.

5. Can the SR-24LE connect to mobile devices?

Yes, Bluetooth® Low Energy allows wireless connection with compatible devices and mapping applications.

6. What industries use the RIDGID SR-24LE?

It is commonly used in construction, utility maintenance, telecommunications, surveying, and infrastructure projects.
