kimo balometer dbm620
In stock

Sauermann DBM620 Air Capture Hood Balometer

SKU : ACHSMNDBM620
MAKE : SAUERMANN
MODEL : DBM620
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Sauermann
AED 8,800.00 - AED 8,800.00
AED 8,800.00
AED 9,400.00
AED 9,400.00 - AED 9,400.00
AED 9,400.00
(Including VAT)

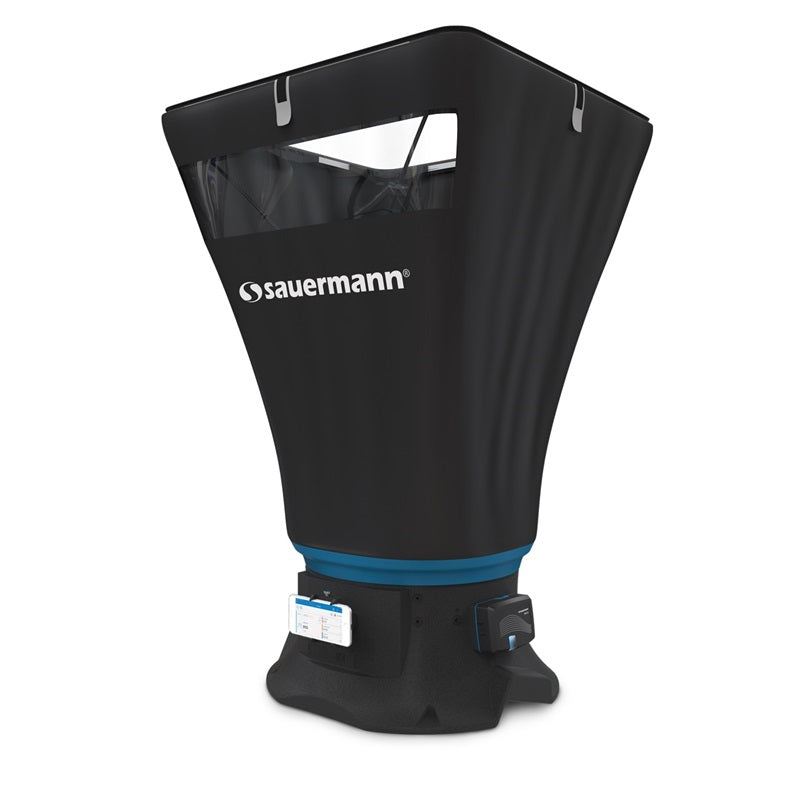

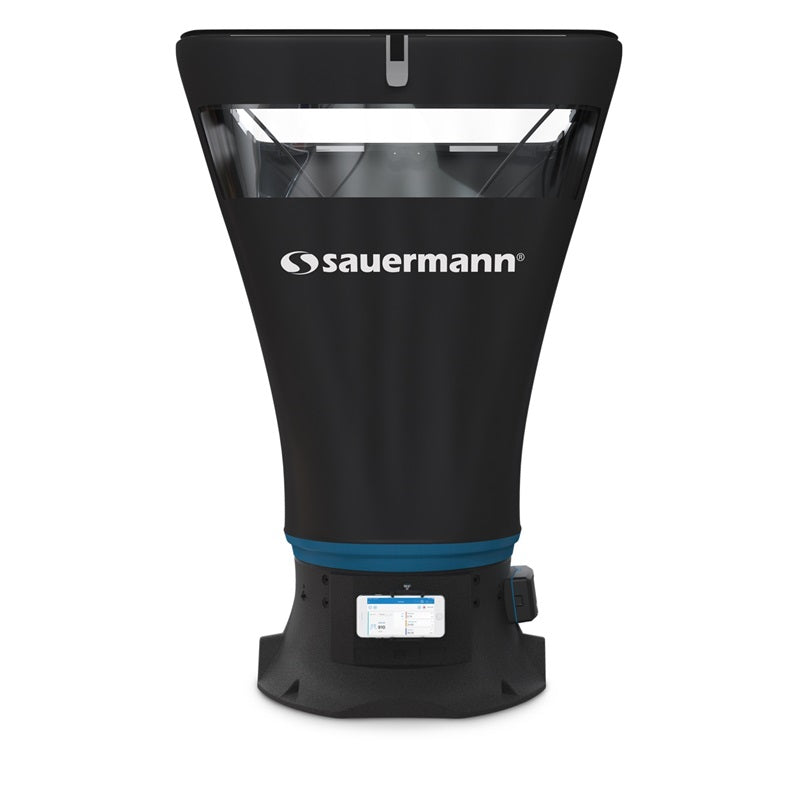

Sauermann DBM620 Air Capture Hood Balometer

The Sauermann DBM 620 Air Capture Hood is a cutting-edge instrument designed for accurately measuring air volume flow rates in HVAC systems. This lightweight and portable device is ideal for professionals in HVAC, building commissioning, and facility management who require precise airflow measurements to ensure optimal system performance. The DBM 620 features a removable micromanometer, long-range wireless connectivity, and a range of customizable hoods, making it versatile and easy to use in a variety of environments.

Features

  • Comprehensive Measurement Capabilities: Simultaneously displays up to four parameters, including airflow, temperature, humidity, and atmospheric pressure, providing a complete overview of air quality.
  • Removable Micromanometer: The measuring unit can be detached and used independently for measuring differential pressure, air velocity, and airflow in ducts.
  • Long-Range Wireless Connectivity: Offers wireless connection with a range of up to 30 meters, allowing real-time data monitoring via the SmartKap mobile app.
  • Automatic Airflow Direction Detection: Automatically detects and displays the direction of airflow, whether it is extraction or supply.
  • Foldable and Lightweight Design: The DBM 620’s frame is foldable for easy transportation and storage, and the entire unit is lightweight, enhancing portability.
  • User-Friendly Interface: The device is controlled via a smartphone or tablet, ensuring easy operation and data logging through the SmartKap app.
  • Wide Measurement Range: Capable of measuring airflow from 35 to 4250 m³/h, making it suitable for a wide variety of HVAC applications.

Sauermann DBM 620 Air Capture Hood

Measurement Parameters





Airflow

 35 to 4250 m³/h (±3% of reading ±10 m³/h)



Air Velocity

 0.2 to 10 m/s (±3% of reading ±0.04 m/s)



Temperature

 -20 to +70 °C (±0.2 °C)



Relative Humidity

 0 to 100% RH (±1.5% RH)



Atmospheric Pressure

 700 to 1100 mbar (±3 mbar)



Differential Pressure

 -2500 to +2500 Pa (±0.2% of reading ±2 Pa)



Display

 Data displayed on a smartphone or tablet via the SmartKap mobile app.



Power Supply

 4 x AA alkaline batteries (up to 30 hours of operation)



Wireless Connectivity

 Class 1, BLE 4.2, with a range of up to 30 m (98 ft)



Dimensions





Folded

 475 x 455 x 255 mm



Mounted

 610 x 610 x 980 mm



Weight

 2.9 kg (with base, measuring unit, hood, and frame)



Operating Temperature

 -5 to +50 °C



Storage Temperature

 -20 to +60 °C



Protection Rating

 IP40



  • Included:
    • DBM 620 base with measuring grid
    • Removable micromanometer with wireless connection
    • 610 x 610 mm hood with flow straightener and foldable frame
    • 2 x 0.80 m silicone tubes
    • Replacement hinges for frames
    • Transport case
    • Calibration certificate
  • Optional:
    • Additional hoods (720 x 720 mm, 720 x 1320 mm, 420 x 1520 mm, 1020 x 1020 mm)
    • Measurement grid kit for large ceiling vents
    • Telescopic tripod with adjustable height
    • Additional transport cases
    • Pitot tube attachment for duct airflow measurements
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1: What is the primary use of the Sauermann DBM 620 Air Capture Hood?

A1: The DBM 620 is used for measuring air volume flow rates in HVAC systems, making it essential for ensuring proper system performance and air quality in buildings.

Q2: Can the micromanometer be used separately from the DBM 620?

A2: Yes, the micromanometer can be detached and used independently for measuring differential pressure, air velocity, and airflow in ducts.

Q3: What is the range of wireless connectivity for the DBM 620?

A3: The DBM 620 offers wireless connectivity with a range of up to 30 meters, allowing for real-time data monitoring via the SmartKap mobile app.

Q4: Is the DBM 620 suitable for use in different environments?

A4: Yes, the DBM 620 is designed to be portable and adaptable, with foldable frames and multiple hood sizes to accommodate various HVAC setups.

Q5: How long does the battery last on the DBM 620?

A5: The DBM 620 is powered by four AA batteries, providing up to 30 hours of continuous operation.

Q6: Does the DBM 620 come with a calibration certificate?

A6: Yes, the DBM 620 is supplied with a calibration certificate, ensuring accurate and reliable measurements from the outset.
