Multifunction Panel Transmitter Si-CPE320

SKU : Si-CPE320
MAKE : SAUERMANN
MODEL : Si-CPE320
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 4,000.00
AED 4,000.00 - AED 4,000.00
Current price AED 4,000.00
(Including VAT)

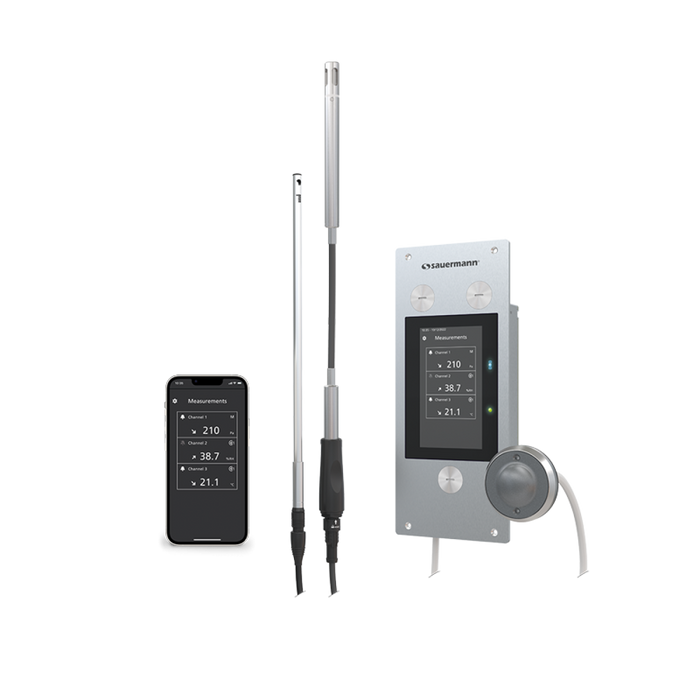

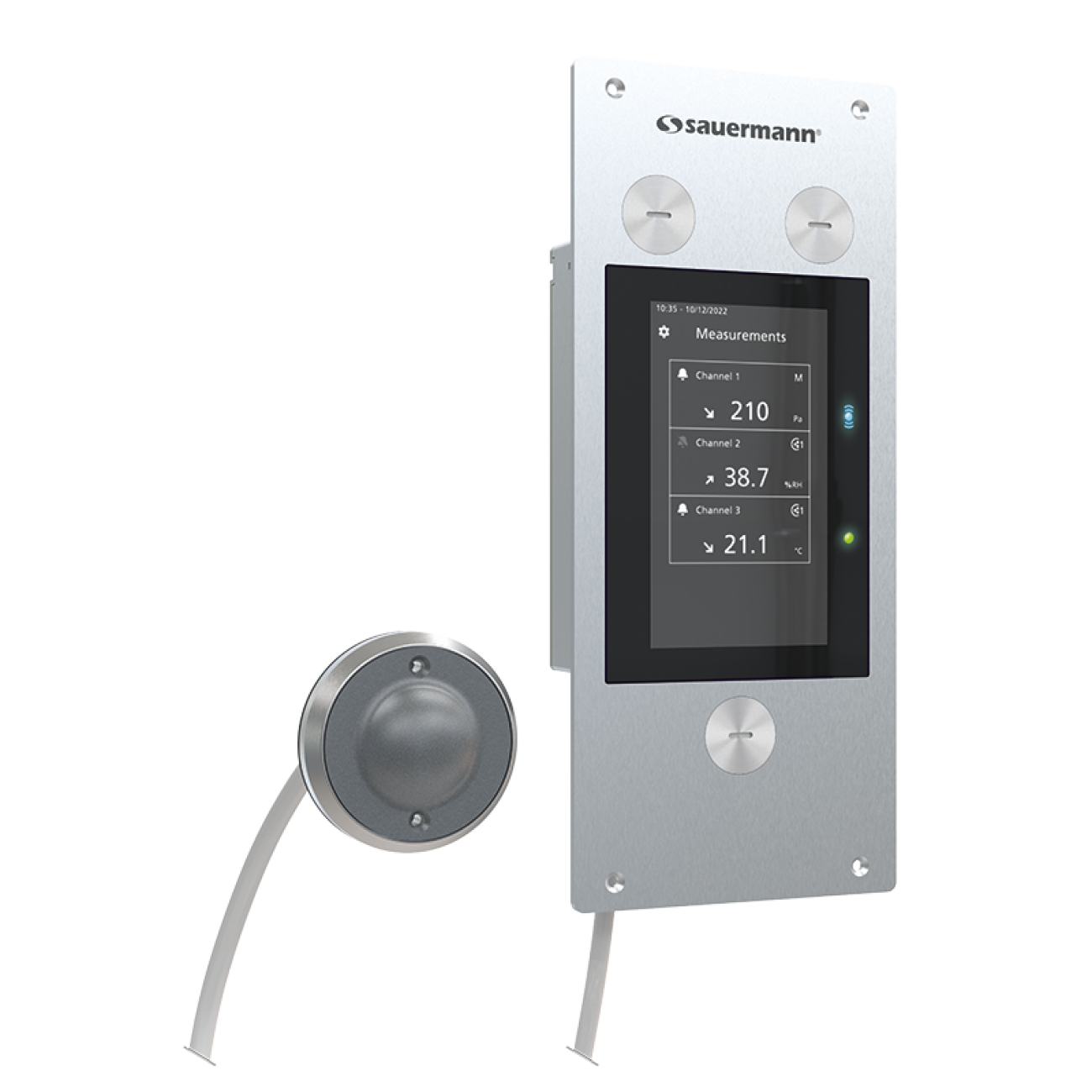

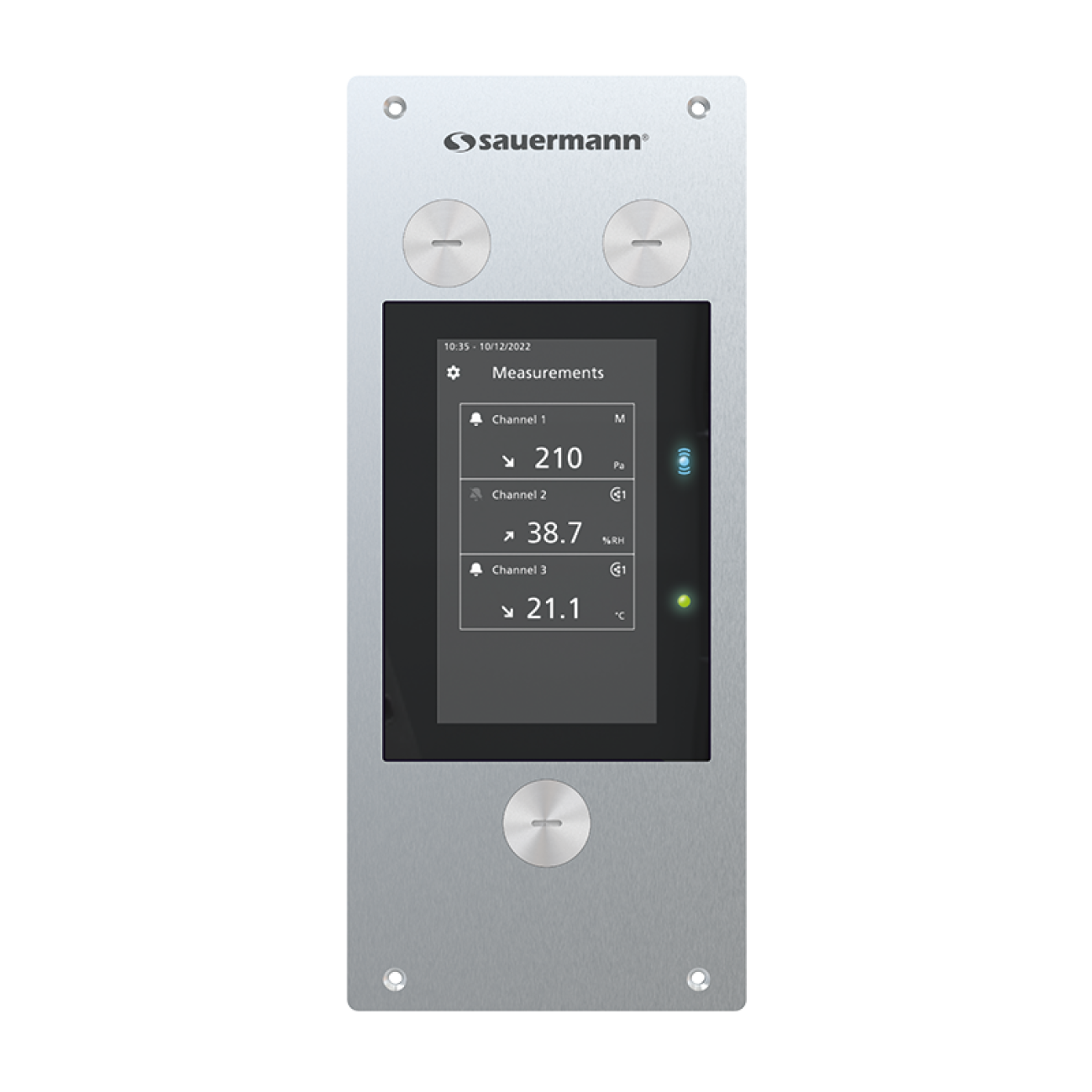

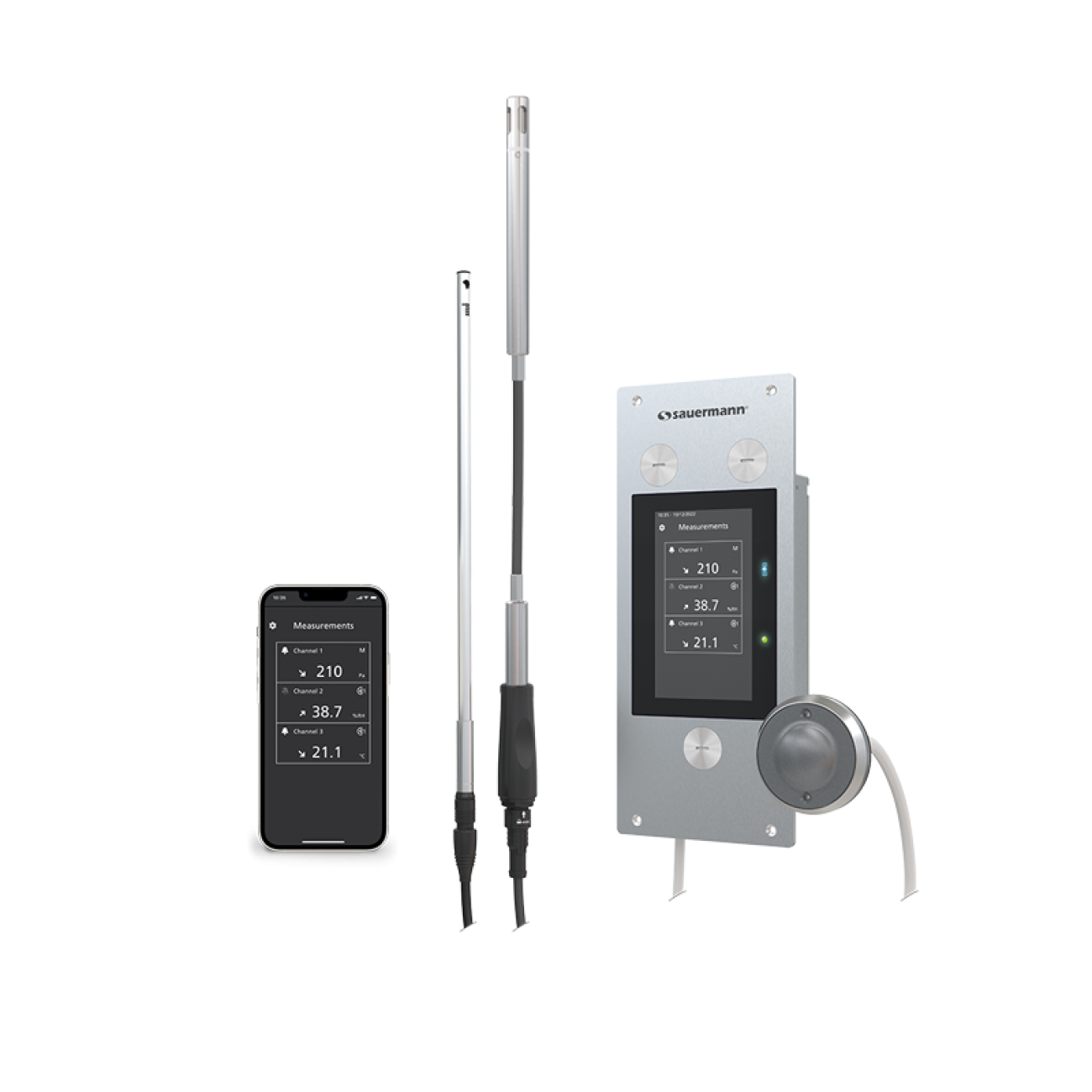

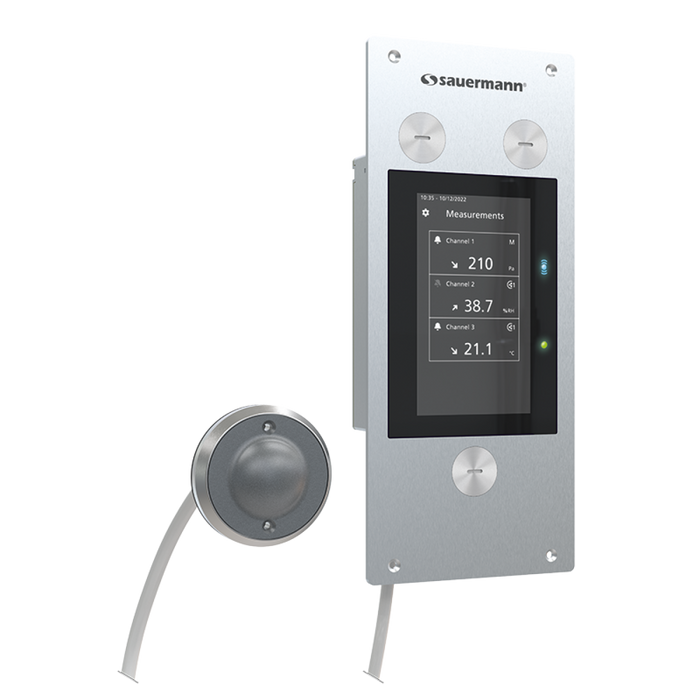

Multifunction Panel Transmitter Si-CPE320

The Si-CPE320 Multifunction Panel Transmitter is an advanced, highly versatile device designed to monitor and regulate air parameters in critical environments, such as clean rooms, laboratories, and industrial HVAC systems. This state-of-the-art transmitter integrates a high-accuracy differential pressure sensor and provides real-time measurements of differential pressure, temperature, humidity, and CO2 levels. The Si-CPE320 features a durable IP66 stainless steel housing, making it resistant to harsh environments, including those with vaporized hydrogen peroxide. With a user-friendly touch display and optional wireless communication, the Si-CPE320 ensures precise monitoring and compliance with stringent regulations.

Features

  • High-Accuracy Differential Pressure Sensor: Measures differential pressure with high precision, ranging from -250 to 250 Pa (-1.0 to 1.0 inH2O).
  • Multifunctional Monitoring: Capable of monitoring differential pressure, temperature, humidity, and CO2 levels in real-time.
  • Touchscreen Display: Equipped with a 480 x 272-pixel graphic touchscreen for easy operation and clear data visualization.
  • Flexible Output Options: Includes 3 x analogue outputs (0/4-20 mA or 0-5/10 V) and an RS485 interface with Modbus RTU protocol for seamless integration.
  • IP66 Stainless Steel Housing: Ensures durability and resistance to vaporized hydrogen peroxide, making it ideal for clean rooms and harsh environments.
  • Wireless Communication (Optional): Supports wireless data transmission for easy configuration and monitoring via mobile app.
  • Self-Calibration System: Features a self-calibration system to maintain long-term stability and measurement accuracy.
  • Selectable Pressure Connections: Front and rear adjustable pressure connections simplify installation and calibration.
Measuring Range (Differential Pressure)

 -250 to 250 Pa (-1.0 to 1.0 inH2O)



Accuracy

 ±0.3% of measured value ±0.3 Pa (-50 to 50 Pa)



Communication Interface

 RS485 with Modbus RTU protocol



Power Supply

 24 VAC / VDC ±10%



Outputs

 3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires)



Wireless Communication Range (Optional)

 Up to 15 m (50 ft), depending on smartphone signal strength



Display

 480 x 272 pixels graphic touchscreen



Protection Rating

 IP66 (front face)



Operating Temperature

 -10 to 50 °C (14 to 122 °F)



Storage Temperature

 -10 to 70 °C (14 to 158 °F)



Housing Material

 Front face - Brushed stainless steel 316L; Back housing - ABS V0



Dimensions

 218 mm x 200 mm x 100 mm (8.58’’ x 7.87’’ x 3.94’’)



Weight

 684.4 g (1.5 lb)
