AC/DC Clamp Meter

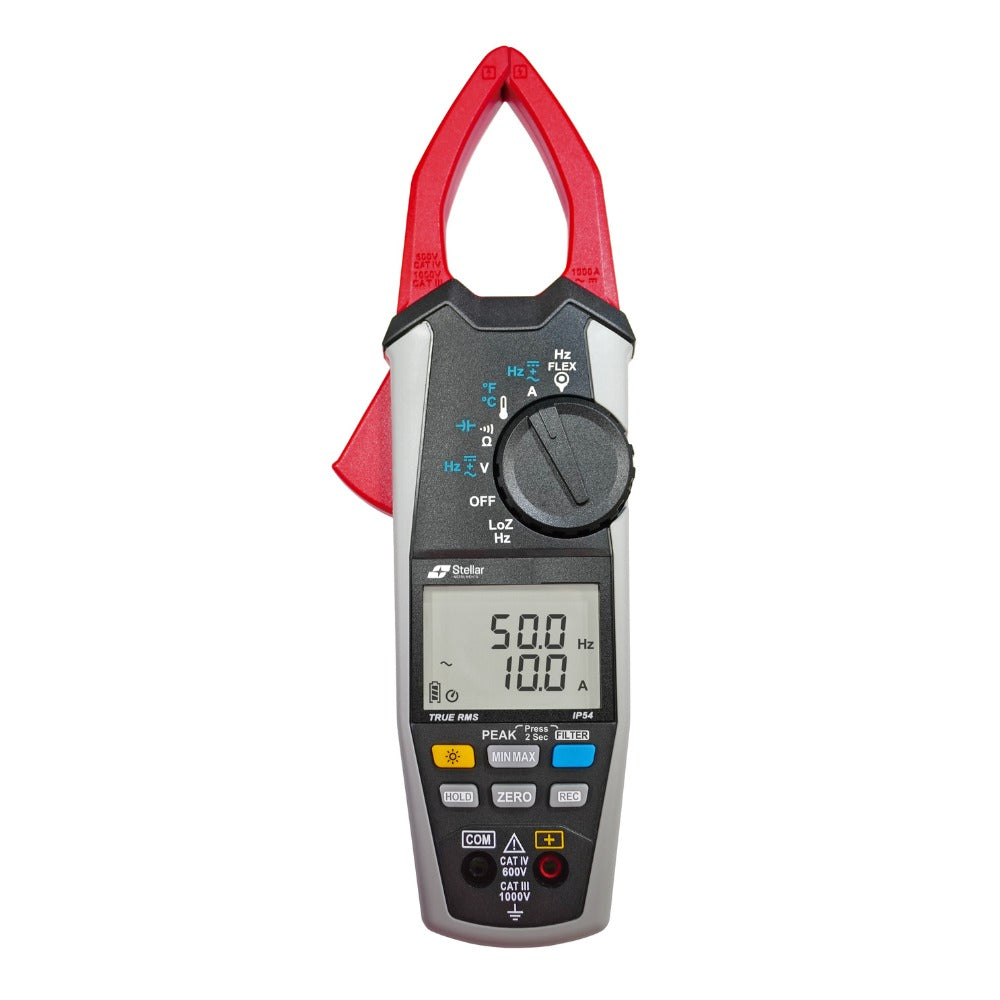

Stellar CM810 1000A True RMS AC/DC Clamp Meter

SKU : SICM810
MAKE : STELLAR INSTRUMENT
MODEL : CM810
WARRANTY : 1 Year
Stellar Instruments
AED 690.00 - AED 690.00
AED 690.00
AED 690.00 - AED 690.00
AED 690.00
(Including VAT)

Stellar CM810 1000A True RMS AC/DC Clamp Meter

The Stellar CM810 is a professional 1000A AC/DC True RMS clamp meter designed for electrical testing, troubleshooting, and industrial maintenance applications. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, and temperature, making it a versatile tool for technicians and engineers.

With dual display, auto/manual ranging, IP54 waterproof protection, and CAT IV 600V / CAT III 1000V safety rating, the CM810 is suitable for demanding field environments. It also supports an optional flexible current probe for measuring higher current ranges up to 3000A.

Features:

  • True RMS AC/DC clamp meter
  • AC/DC current measurement up to 1000A
  • Optional flexible current probe measurement up to 3000A
  • AC/DC voltage measurement up to 1000V
  • Measures resistance, capacitance, frequency, continuity, and temperature
  • Dual display for convenient reading
  • Auto and manual ranging selection
  • AC+DC measurement function
  • LoZ voltage measurement function
  • Continuity buzzer indication
  • IP54 waterproof protection
  • Jaw opening diameter: 35 mm max.
  • CAT IV 600V / CAT III 1000V safety rating
  • Suitable for industrial electrical maintenance and field service applications


Product Type

True RMS AC/DC Clamp Meter

DC Current Range

300A / 1000A

AC Current Range

300A / 1000A

AC+DC Current

300A / 1000A

Flexible Current Probe

Optional, up to 3000A

DC Voltage Range

60V / 600V / 1000V

AC Voltage Range

60V / 600V / 1000V

AC+DC Voltage

60V / 600V / 1000V

Resistance

600Ω / 6kΩ / 60kΩ / 600kΩ

Capacitance

6µF / 60µF / 600µF / 6mF

Frequency

Up to 100kHz

Temperature

-100°C to 500°C / -148°F to 932°F

Continuity

Buzzer indication

LoZ Voltage

60V / 600V

Display

6000-count LCD display

Jaw Opening

35 mm max.

Sampling Rate

2 times per second

Protection

IP54 waterproof protection

Safety Rating

CAT IV 600V / CAT III 1000V

Battery

1.5V AAA battery x 3

Dimensions

259 x 89 x 42.5 mm

Weight

Approx. 392g


CM810-Datasheet : Download

1. What is the Stellar CM810 used for?

The Stellar CM810 is used for electrical testing, troubleshooting, and maintenance of panels, motors, cables, HVAC systems, and industrial electrical equipment.

2. What is the maximum current measurement range?

The CM810 can measure AC/DC current up to 1000A using the clamp, and up to 3000A with an optional flexible current probe.

3. Does the CM810 support True RMS measurement?

Yes, it is a True RMS clamp meter, suitable for accurate measurement in electrical systems with non-linear loads.

4. Can it measure voltage and resistance?

Yes, the CM810 can measure AC/DC voltage up to 1000V, resistance, continuity, capacitance, frequency, and temperature.

5. What is the safety rating of the CM810?

The meter is rated CAT IV 600V / CAT III 1000V, making it suitable for professional industrial and field applications.

6. Is the CM810 suitable for outdoor or field use?

Yes, it has IP54 waterproof protection, a rugged design, and dual display for convenient field operation.
