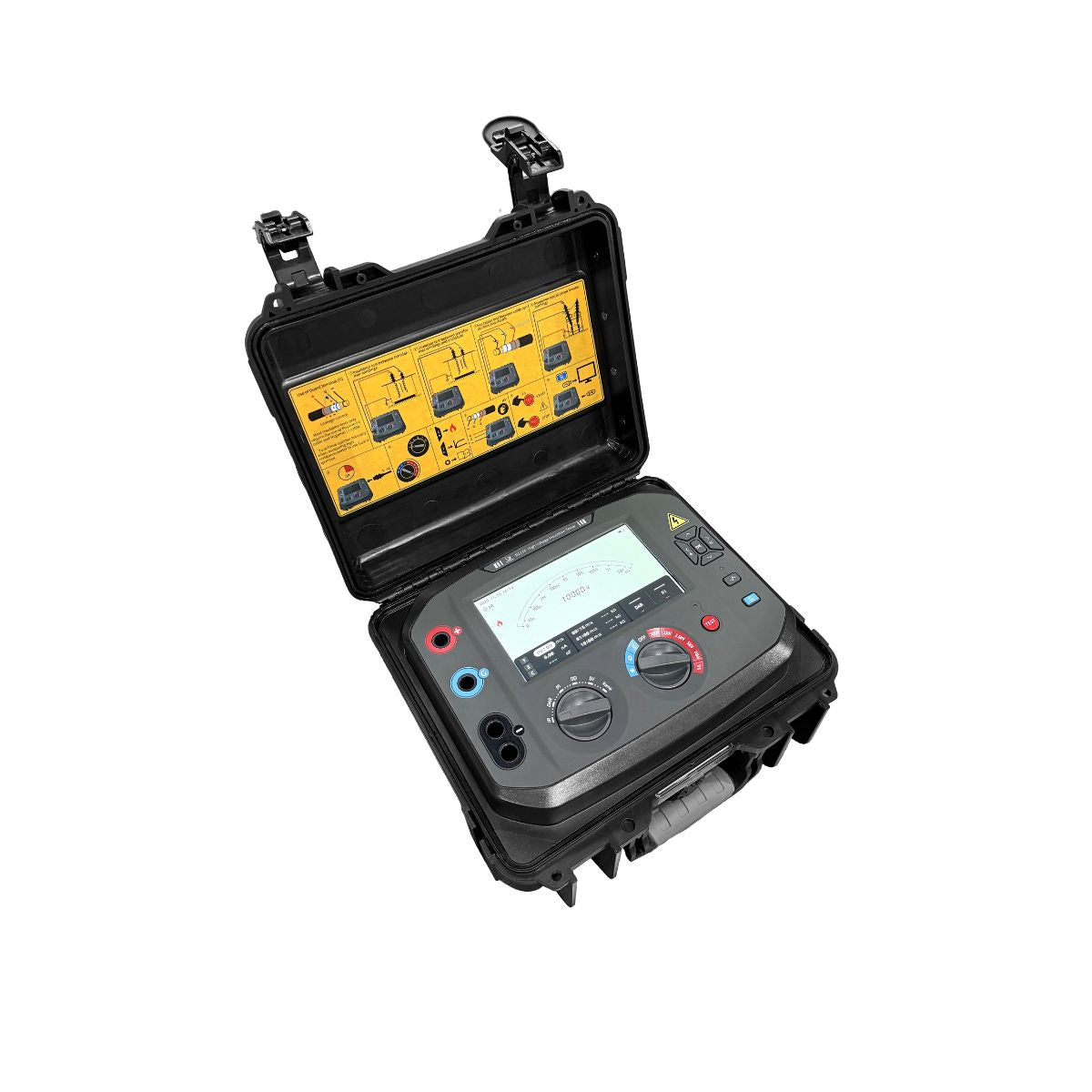

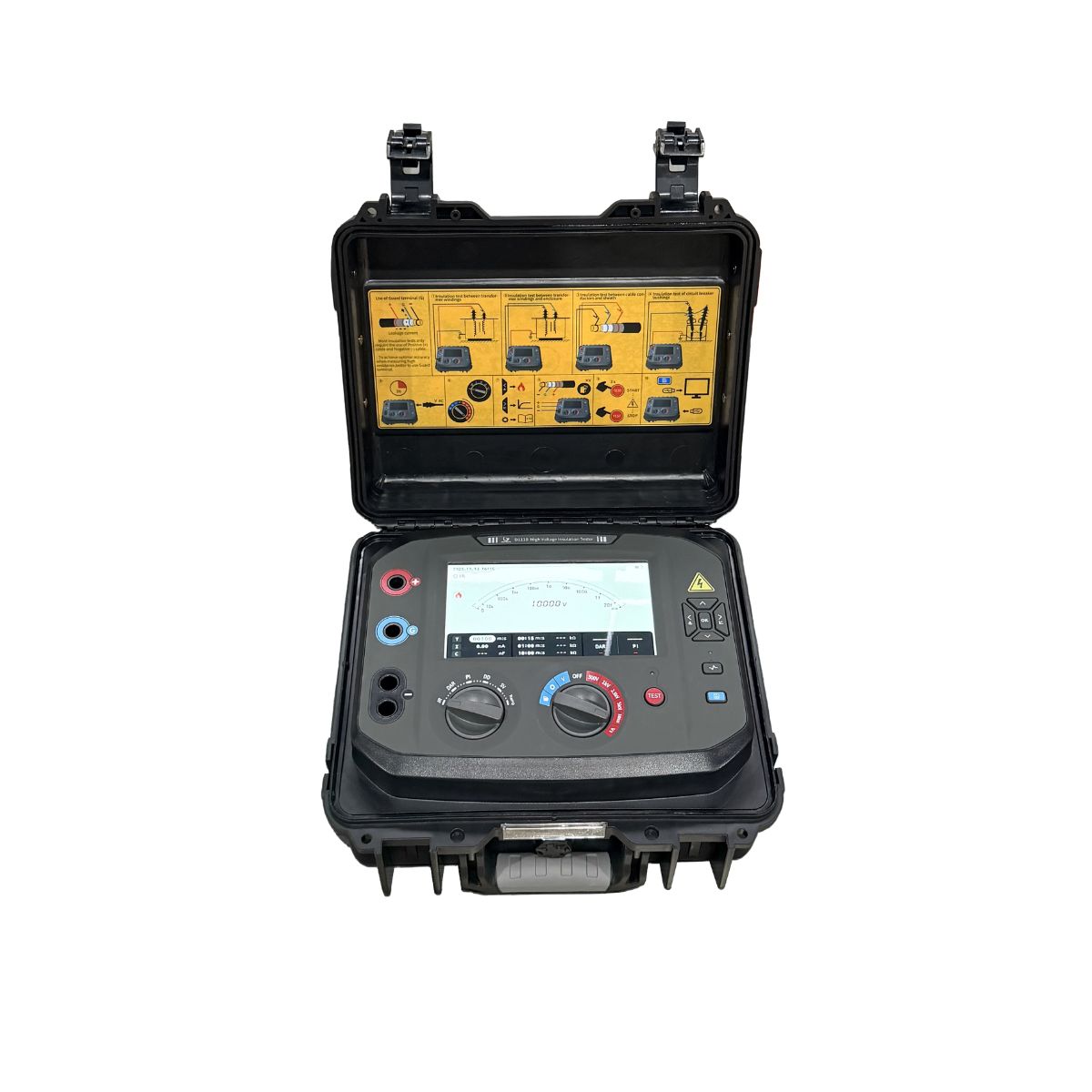

Stellar IRTX10K High-Voltage Insulation Tester

SKU : SIIRTX10K
MAKE : STELLAR INSTRUMENT
MODEL : IRTX10K
WARRANTY : 1 Year
Stellar Instruments
AED 8,000.00 - AED 8,000.00
AED 8,000.00
AED 8,000.00 - AED 8,000.00
AED 8,000.00
(Including VAT)

Stellar IRTX10K High-Voltage Insulation Tester

The Stellar Instruments IRTX10K is a professional high-voltage insulation resistance tester designed for testing and diagnosing insulation conditions in high-voltage electrical equipment. It is suitable for use in power utilities, industrial plants, electrical maintenance, commissioning, and preventive maintenance applications.

The IRTX10K can generate a test voltage from 40 V up to 12,000 V, making it suitable for testing transformers, cables, circuit breakers, motors, generators, bushings, and other high-voltage assets. It supports advanced insulation test functions such as IR, IR(t), DAR, PI, SV, DD, and Ramp test, helping users evaluate insulation health accurately and safely.

Features:

  • Output voltage up to 12 kV
  • Wide insulation resistance range from 10 kΩ to 35 TΩ
  • Supports multiple test modes: IR, IR(t), DAR, PI, SV, DD, Ramp test
  • Automatic noise rejection function for stable readings in high-interference environments
  • Large 7-inch color display for clear and easy operation
  • Real-time display of insulation resistance, voltage, and current
  • Adjustable short-circuit current: 1 mA to 6 mA
  • Operates with battery or AC mains power
  • Built-in memory with time and date stamp
  • Data export through USB
  • Communication interface: USB and Bluetooth

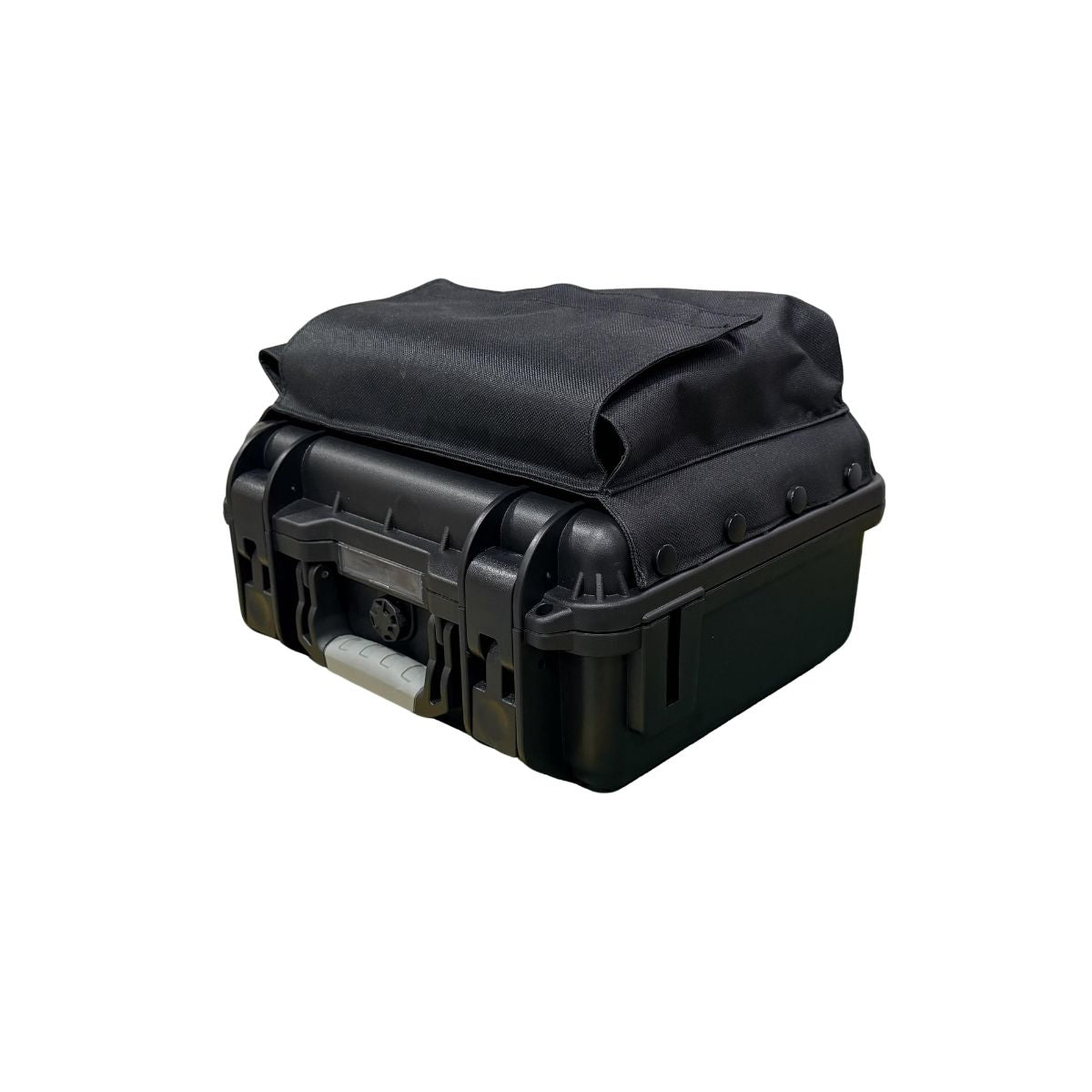

  • Rugged dual-case design suitable for field applications
  • Suitable for high-voltage testing of transformers, cables, motors, generators, circuit breakers, and bushings

Output Voltage

40 V to 12,000 V

Insulation Resistance Range

10 kΩ to 35 TΩ

Short Circuit Current

1 mA to 6 mA, adjustable

Test Modes

IR, IR(t), DAR, PI, SV, DD, Ramp Test

Voltage Measurement Range

AC/DC voltage measurement available

Display

7-inch color display

Noise Rejection

Automatic noise rejection function

Data Storage

Internal memory with time/date stamp

Communication Interface

USB and Bluetooth

Power Supply

Battery or AC power operation

Protection Class

Rugged field-use design with IP-rated protection

Applications

Transformers, cables, motors, generators, circuit breakers, bushings, and HV electrical assets

IRTX10K-Datasheet : Download

1. What is the maximum test voltage of the IRTX10K?

The IRTX10K supports an output test voltage from 40V up to 12,000V, making it suitable for high-voltage insulation testing applications.

2. What equipment can be tested with the IRTX10K?

It can be used for testing power transformers, HV/MV cables, circuit breakers, motors, generators, bushings, and measurement transformers.

3. What test modes are available in the IRTX10K?

The tester supports multiple test modes including IR, IR(t), DAR, PI, SV, DD, Ramp Test, and voltage measurement.

4. Does the IRTX10K have noise rejection?

Yes, the IRTX10K has an automatic noise rejection function, which helps provide stable and accurate readings in electrically noisy environments.

5. Can the IRTX10K store and export test data?

Yes, it has built-in memory with time/date stamp and supports data export through USB. It also includes USB and Bluetooth communication.

6. Is the IRTX10K suitable for field use?

Yes, the IRTX10K is designed with a rugged dual-case structure, large color display, battery/AC power operation, and IP-rated protection, making it suitable for field testing and maintenance work.
