Stellar IRTX5K High-Voltage Insulation Tester

SKU : SIIRTX5K
MAKE : STELLAR INSTRUMENT
MODEL : IRTX5K
WARRANTY : 1 Year
Stellar Instruments
AED 5,800.00 - AED 5,800.00
AED 5,800.00
AED 5,800.00 - AED 5,800.00
AED 5,800.00
(Including VAT)

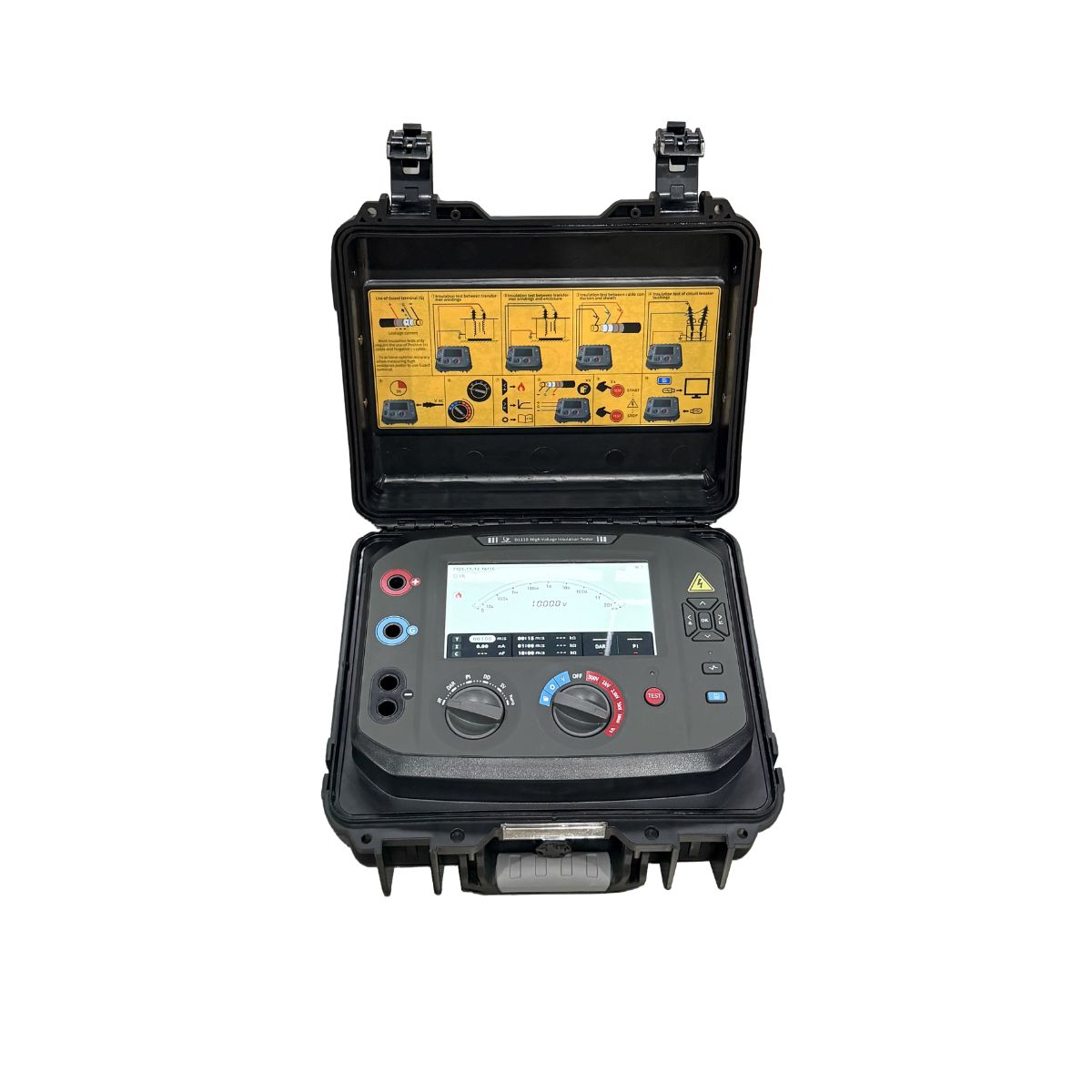

Stellar IRTX5K High-Voltage Insulation Tester

The Stellar Instruments IRTX5K is a portable high-voltage insulation resistance tester designed for electrical maintenance, commissioning, and preventive testing applications. It provides an output test voltage up to 5000 V and is suitable for testing insulation resistance of transformers, cables, motors, generators, circuit breakers, bushings, and other high-voltage electrical equipment.

The IRTX5K is built with a rugged field case, large color display, advanced noise rejection, and multiple insulation test modes, making it suitable for use in substations, power plants, industrial facilities, and utility maintenance departments.

Features:

  • Output voltage range: 40 V to 5000 V
  • Insulation resistance range: 10 kΩ to 15 TΩ
  • Multiple test voltages: 250 V, 500 V, 1000 V, 2500 V, and 5000 V
  • Supports test modes: IR, IR(t), DAR, PI, SV, DD, Ramp Test, and Voltage Measurement
  • Automatic noise rejection function for stable readings in high-interference environments
  • Large 7-inch color display for clear and easy operation
  • Real-time display of insulation resistance, voltage, and current
  • Operates from rechargeable battery or AC mains supply
  • Short circuit current selection up to 6 mA
  • Memory capacity: 100 hours logging at 1-second intervals
  • Data export via USB
  • Communication interface: USB and Bluetooth
  • Rugged case design suitable for field use
  • IP rating: IP65 with lid closed, IP40 with lid open
  • Lightweight and portable, approx. 4.3 kg

Model

IRTX5K

Product Type

High-Voltage Insulation Tester

Output Voltage Range

40 V to 5000 V

Preset Test Voltages

250 V, 500 V, 1000 V, 2500 V, 5000 V

Insulation Resistance Range

10 kΩ to 15 TΩ

Short Circuit Current

Selectable up to 6 mA

Test Modes

IR, IR(t), DAR, PI, SV, DD, Ramp Test, Voltage Measurement

Display

7-inch color display

Noise Rejection

Automatic noise rejection function

Data Storage

100 hours logging at 1-second interval

Communication

USB and Bluetooth

Power Supply

Rechargeable battery and AC mains operation

Protection Rating

IP65 with lid closed, IP40 with lid open

Operating Temperature

-10°C to +50°C

Storage Temperature

-20°C to +70°C

Weight

Approx. 4.3 kg

Application

Transformers, cables, motors, generators, circuit breakers, bushings, and HV electrical equipment

IRTX5K-Datasheet. : Download

1. What is the Stellar IRTX5K used for?

The IRTX5K is used to test insulation resistance in electrical equipment such as transformers, cables, motors, generators, circuit breakers, and bushings.

2. What is the maximum test voltage of the IRTX5K?

The IRTX5K can generate test voltage up to 5000 V / 5 kV.

3. What insulation resistance range can it measure?

It can measure insulation resistance from 10 kΩ up to 15 TΩ.

4. What test modes are available in the IRTX5K?

The tester supports IR, IR(t), DAR, PI, SV, DD, Ramp Test, and Voltage Measurement.

5. Can the IRTX5K be used in high-noise electrical environments?

Yes. It has an automatic noise rejection function and filtering features to provide stable readings in electrically noisy environments.

6. Is the IRTX5K suitable for field use?

Yes. It comes in a rugged case design, has a large 7-inch color display, operates on battery or AC power, and is suitable for outdoor and industrial field testing.
