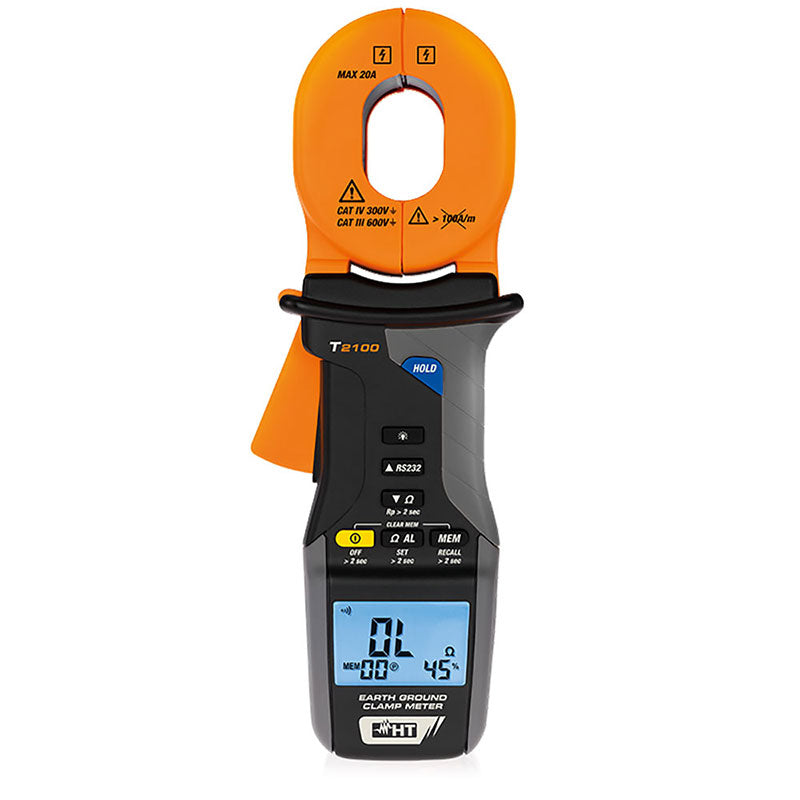

T2100 Clamp meter for measuring earth resistance directly on earth rods compatible with MacrotestG series instruments
T2100 is a professional clamp specially developed to evaluate resistance of earth rods with no need to disconnect any part of the system.The inner part of the device is made of 2 jaws, one for current reading and the other for voltage generation. The voltage jaws generate a potential (E) on the loop during resistance (R) measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I, the instrument displays the resistance R value calculated as their ratio. The value measured by the device can be used in case the single rods do not influence each other. This device complies with standard IEC/EN61010-1 in CAT III 600V, CAT IV 300V and it is the ideal solution for measurements to be carried out both in private and in industrial environments.
TRMS |
Yes |
---|---|
Direct measurement on earth probes without any cable interruption |
Yes |
Serial interface RS-232 for connection to devices of Macrotest |
Yes |
Internal memory for measured data saving |
99 locations |
LCD display |
Yes |
Backlight |
Yes |
Auto Power OFF |
Yes |
Protection category |
CAT III 150V |
Size (LxWx H) (mm) |
293x90x66 |
Weight in grams (batteries included) |
1300 |
Guidelines |
CE MARK |
T2100 Clamp meter for measuring earth resistance directly on earth rods compatible with MacrotestG series instruments
T2100 is a professional clamp specially developed to evaluate resistance of earth rods with no need to disconnect any part of the system.The inner part of the device is made of 2 jaws, one for current reading and the other for voltage generation. The voltage jaws generate a potential (E) on the loop during resistance (R) measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I, the instrument displays the resistance R value calculated as their ratio. The value measured by the device can be used in case the single rods do not influence each other. This device complies with standard IEC/EN61010-1 in CAT III 600V, CAT IV 300V and it is the ideal solution for measurements to be carried out both in private and in industrial environments.
TRMS |
Yes |
---|---|
Direct measurement on earth probes without any cable interruption |
Yes |
Serial interface RS-232 for connection to devices of Macrotest |
Yes |
Internal memory for measured data saving |
99 locations |
LCD display |
Yes |
Backlight |
Yes |
Auto Power OFF |
Yes |
Protection category |
CAT III 150V |
Size (LxWx H) (mm) |
293x90x66 |
Weight in grams (batteries included) |
1300 |
Guidelines |
CE MARK |
