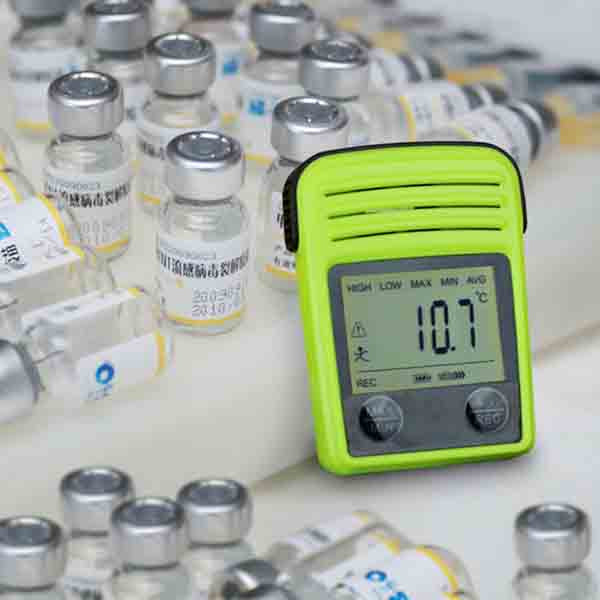

Temperature Humidity Datalogger - Mini TH
MINI can be easily installed in relatively narrow space because of the small size. With multiple patent designs, MINI data loggers support portable use and also in transit use. Two keys equipped on MINI data loggers, one is ON / OFF key, the other is MAX / MIN key. Making operations on ON / OFF key, to start or stop recording as needed. Using MAX / MIN to query MAX, MIN, or Average data of the logged on site.
ZOGLAB MINI data loggers pass both CE and FCC certificates, and are manufactured according to the requirements of RoHS. MINI series are able to withstand a 25KV static and to avoid secondary pollution to super clean areas thanks to the ABS+PC housing which is flame-retardant and free of toxicity.
Alarm mark is uniquely designed for MINI data loggers which can help user know every out-of-limit alarm during the logging.
Specifications:
- Large LCD with wide view angle
- Ergonomic design
- High accuracy measurement
- FSTN technology for much clearer display
- Alarm mark
- CE and FCC certificates,
Temperature Measuring range |
-30℃~70℃ |
---|---|
Temperature accuracy |
±0.5℃ |
RH Measuring Range |
0%~100%RH |
RH Accuracy |
±3%RH(10%~85%RH),other range ±5%RH(Testing Environment 23℃±2℃),±2%RH(High-precision version) |
Sampling Interval |
2s , 5s , 10s , 30s , 60s , 255s |
Interface |
Mini USB 2.0 |
IP Class |
IP64 |
Battery |
3.6V lithium battery |
Battery Lifetime |
360 days |
Weight |
85g |
Temperature Humidity Datalogger - Mini TH
MINI can be easily installed in relatively narrow space because of the small size. With multiple patent designs, MINI data loggers support portable use and also in transit use. Two keys equipped on MINI data loggers, one is ON / OFF key, the other is MAX / MIN key. Making operations on ON / OFF key, to start or stop recording as needed. Using MAX / MIN to query MAX, MIN, or Average data of the logged on site.
ZOGLAB MINI data loggers pass both CE and FCC certificates, and are manufactured according to the requirements of RoHS. MINI series are able to withstand a 25KV static and to avoid secondary pollution to super clean areas thanks to the ABS+PC housing which is flame-retardant and free of toxicity.
Alarm mark is uniquely designed for MINI data loggers which can help user know every out-of-limit alarm during the logging.
Specifications:
- Large LCD with wide view angle
- Ergonomic design
- High accuracy measurement
- FSTN technology for much clearer display
- Alarm mark
- CE and FCC certificates,
Temperature Measuring range |
-30℃~70℃ |
---|---|
Temperature accuracy |
±0.5℃ |
RH Measuring Range |
0%~100%RH |
RH Accuracy |
±3%RH(10%~85%RH),other range ±5%RH(Testing Environment 23℃±2℃),±2%RH(High-precision version) |
Sampling Interval |
2s , 5s , 10s , 30s , 60s , 255s |
Interface |
Mini USB 2.0 |
IP Class |
IP64 |
Battery |
3.6V lithium battery |
Battery Lifetime |
360 days |
Weight |
85g |
