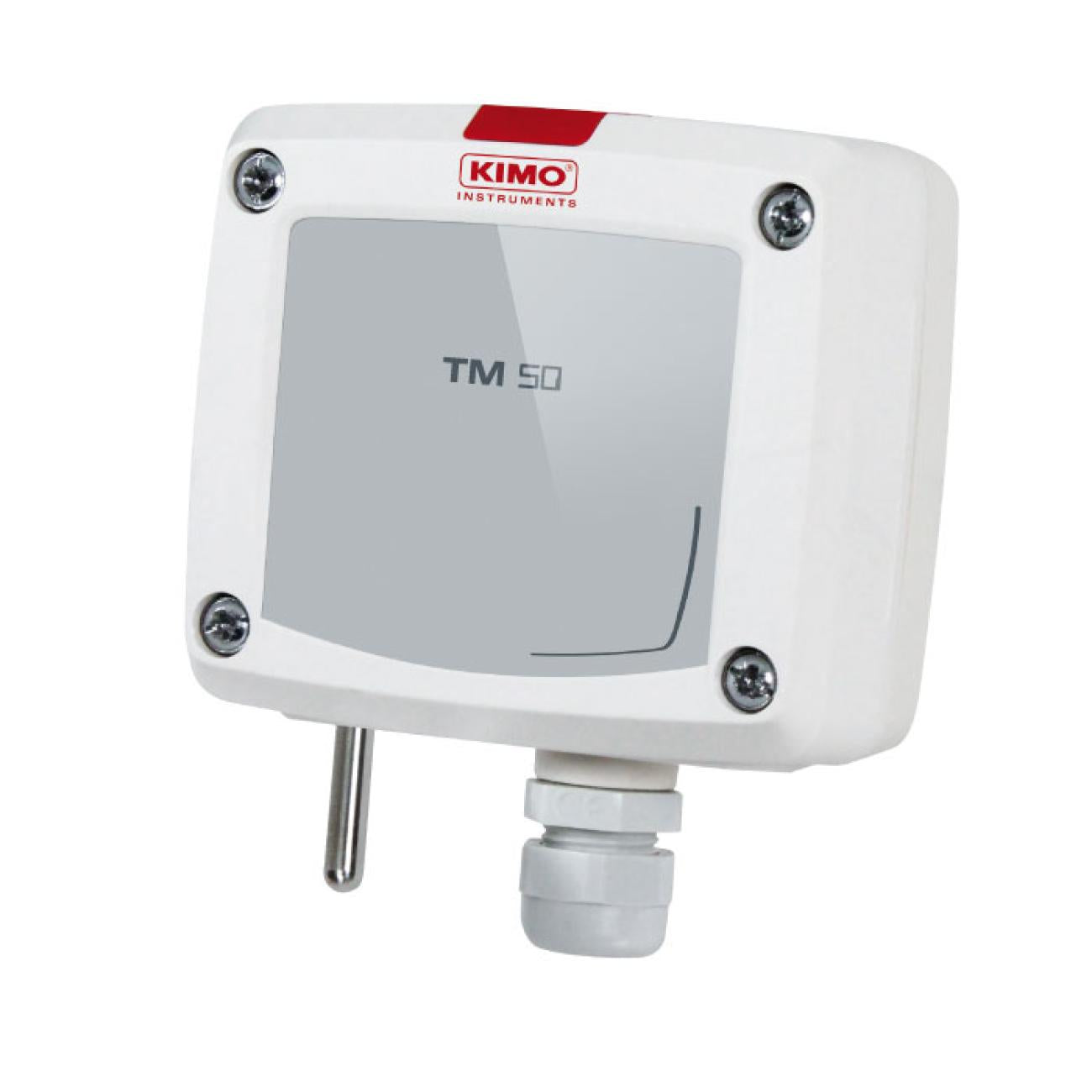

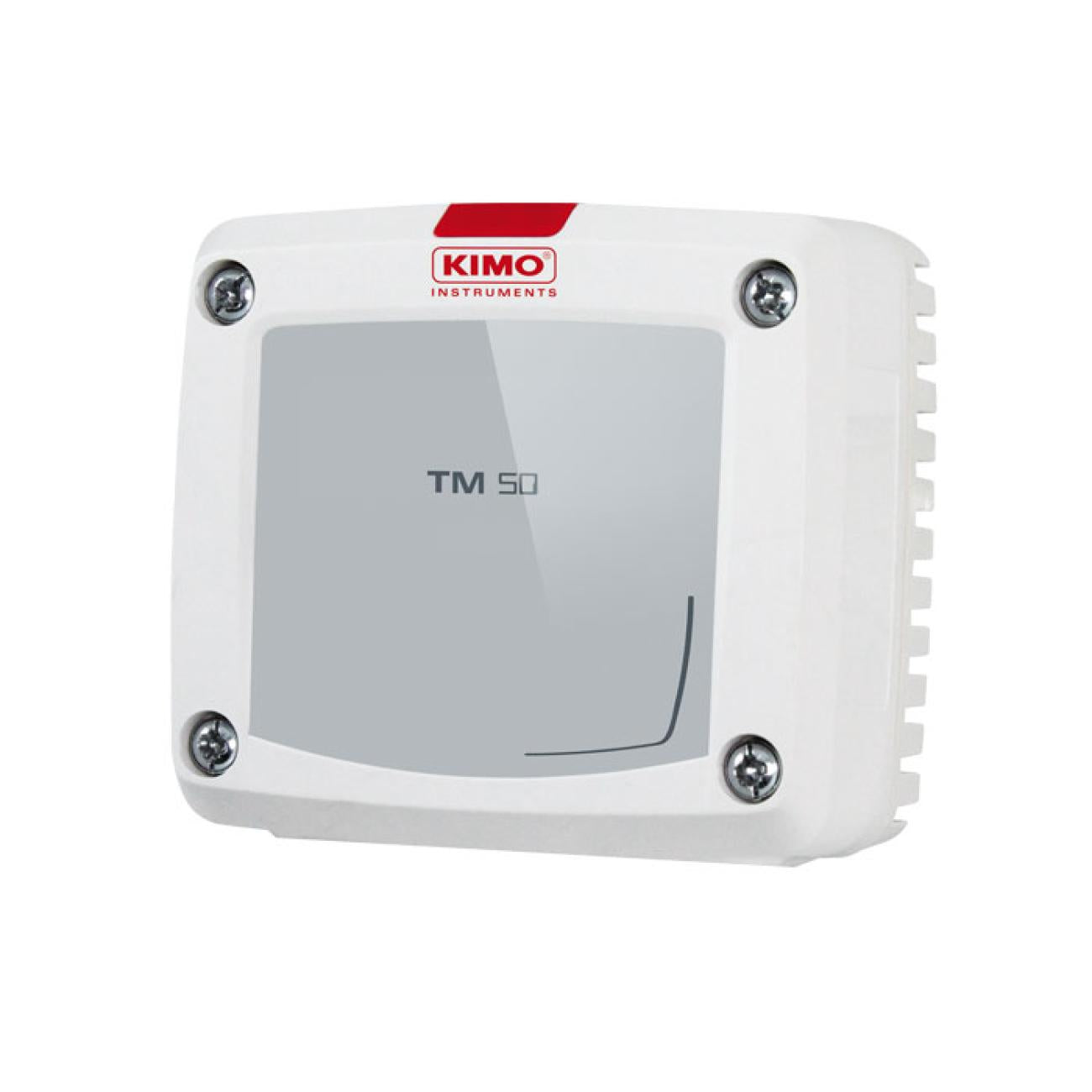

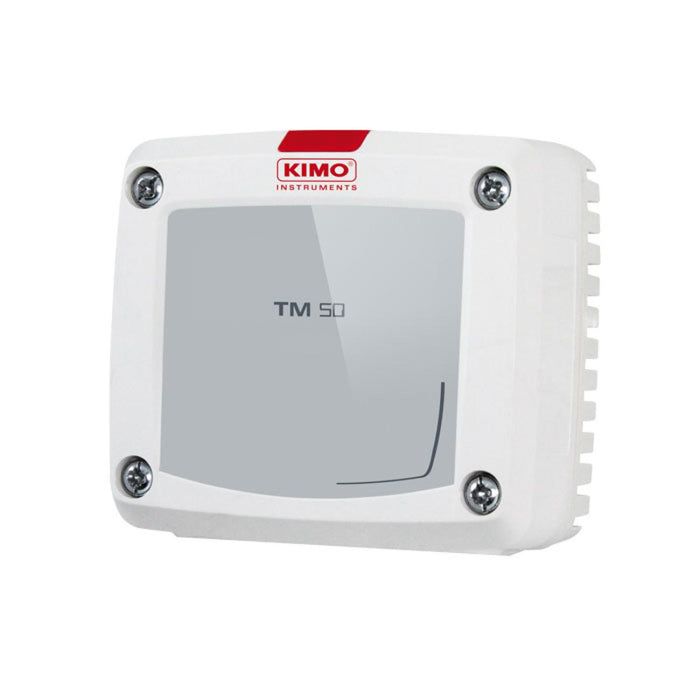

TM 50 Temperature sensor
SKU : TM 50
MAKE : SAUERMANN
MODEL : TM 50
WARRANTY : 1 Year
TM 50 Temperature sensor
The TM 50 Temperature Sensor is a reliable and precise temperature transmitter designed for a wide range of applications, including HVAC systems, industrial processes, and environmental monitoring. Equipped with a Pt100 Class A sensor, the TM 50 ensures accurate temperature measurement in both ambient and airtight environments. Its durable ABS V0 housing with IP65 protection (airtight model) or IP20 protection (ambient model) makes it suitable for various operating conditions. The TM 50 is available in different configurations, providing flexibility to meet specific installation needs.
Features
- Accurate Temperature Measurement: Equipped with a Pt100 Class A sensor, providing precise temperature readings with high accuracy.
- Robust Construction: The ABS V0 housing offers durability and protection, with IP65 rating for the airtight model and IP20 for the ambient model.
- Flexible Installation: Available in ambient and airtight models, allowing for installation in different environmental conditions.
- Easy Mounting System: Features a "¼ turn" system mounting with a wall-mount plate, ensuring quick and secure installation.
- Wide Temperature Range: Operates efficiently in a wide temperature range, from 0 to 50°C for the ambient model and from -20 to +80°C for the airtight model.
- Compact and Lightweight: Compact design with a weight of just 143 g, making it easy to install and integrate into existing systems.
| Measuring Range |
|
| Ambient Model | 0 to 50°C
|
| Airtight Model | -20 to +80°C
|
| Accuracy |
|
| Pt100 Class A | ±0.15°C at 0°C
|
| Housing Material | ABS V0 as per UL94
|
| Protection Index | IP65 for Airtight Model
|
IP20 for Ambient Model
| |
| Sensor Type | Pt100 Class A
|
| Weight | 143 g
|
| Operating Temperature |
|
| Ambient Model | 0 to 50°C
|
| Airtight Model | -20 to +80°C
|
| Storage Temperature | -20 to +80°C
|
| Mounting System | "¼ turn" system with wall-mount plate for airtight model; direct mounting for ambient model
|
| Cable Gland | Suitable for cables up to Ø8 mm
|
TM 50 Temperature sensor
The TM 50 Temperature Sensor is a reliable and precise temperature transmitter designed for a wide range of applications, including HVAC systems, industrial processes, and environmental monitoring. Equipped with a Pt100 Class A sensor, the TM 50 ensures accurate temperature measurement in both ambient and airtight environments. Its durable ABS V0 housing with IP65 protection (airtight model) or IP20 protection (ambient model) makes it suitable for various operating conditions. The TM 50 is available in different configurations, providing flexibility to meet specific installation needs.
Features
- Accurate Temperature Measurement: Equipped with a Pt100 Class A sensor, providing precise temperature readings with high accuracy.
- Robust Construction: The ABS V0 housing offers durability and protection, with IP65 rating for the airtight model and IP20 for the ambient model.
- Flexible Installation: Available in ambient and airtight models, allowing for installation in different environmental conditions.
- Easy Mounting System: Features a "¼ turn" system mounting with a wall-mount plate, ensuring quick and secure installation.
- Wide Temperature Range: Operates efficiently in a wide temperature range, from 0 to 50°C for the ambient model and from -20 to +80°C for the airtight model.
- Compact and Lightweight: Compact design with a weight of just 143 g, making it easy to install and integrate into existing systems.
| Measuring Range |
|
| Ambient Model | 0 to 50°C
|
| Airtight Model | -20 to +80°C
|
| Accuracy |
|
| Pt100 Class A | ±0.15°C at 0°C
|
| Housing Material | ABS V0 as per UL94
|
| Protection Index | IP65 for Airtight Model
|
IP20 for Ambient Model
| |
| Sensor Type | Pt100 Class A
|
| Weight | 143 g
|
| Operating Temperature |
|
| Ambient Model | 0 to 50°C
|
| Airtight Model | -20 to +80°C
|
| Storage Temperature | -20 to +80°C
|
| Mounting System | "¼ turn" system with wall-mount plate for airtight model; direct mounting for ambient model
|
| Cable Gland | Suitable for cables up to Ø8 mm
|
