Transformer Polarity Tester TPT9000

SKU : PMTPT900
MAKE : T&R TEST EQUIPMENT
MODEL : TPT900
WARRANTY : 1
AVAILABILITY : IN STOCK
Original price AED 2,500.00 - Original price AED 2,500.00
Original price AED 2,500.00
AED 3,600.00
AED 3,600.00 - AED 3,600.00
Current price AED 3,600.00
(Including VAT)

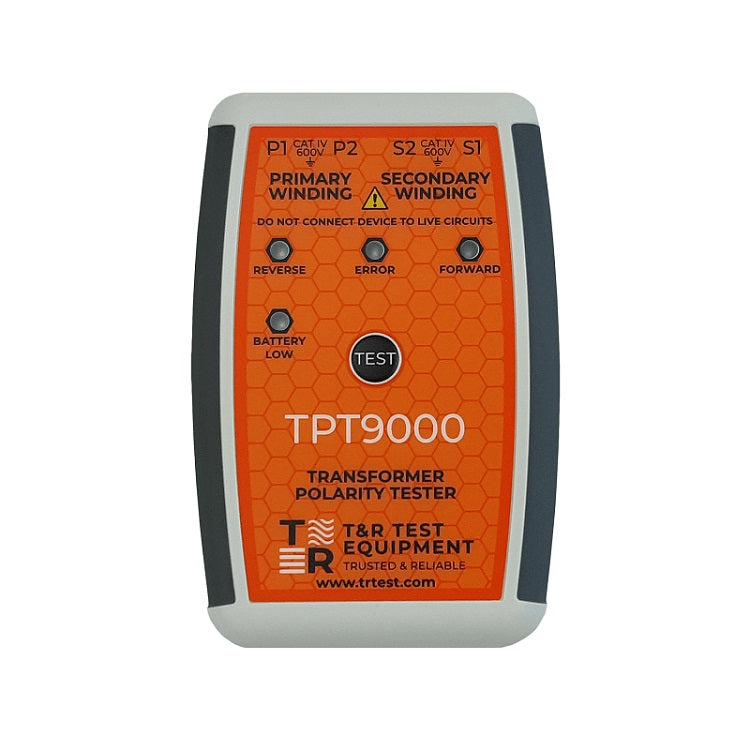

Transformer Polarity Tester TPT9000

The TPT9000 Transformer Polarity Tester is used for determining the correct polarity of current and voltage transformers. This device is a smart plug and play instrument designed for Commissioning Engineers. A lightweight instrument, it comes with magnetised back panel, making it ideal for storage on metallic walls or panels.

TPT9000 automatically detects if the transformer has been connected incorrectly. The device comes with a proving unit to check the correct operation of the unit in the field. A set of 600V CAT IV fused test leads terminated in shrouded 4mm connectors is also included with the unit, along with 4 F500mA HRC fuses.

TPT900 Proving Unit

The instrument is designed to be used on ‘dead’ systems (i.e., no externally supplied voltages are present on the test object). We strongly advise you not to connect the TPT9000 to a live system.  Always make sure that the power of the device under test is off.

TPT9000 Transformer Polarity Tester is designed for use in industrial and electrical substation environments on altitude level of maximum 2000m above sea level. Operating temperature is between 0°C and 45°C, while storage temperature is -20°C to 60°C.

TPT9000 requires a single PP3 9V battery to operate. Battery level is automatically monitored, and the device will not perform a test if the battery voltage is below a useable level.

Transformer Polarity Tester TPT9000
Weight 0.6 kg
Dimensions 118 × 79 × 32 mm
Supplied Accessories

Proving unit
1 off 1m Black fused lead
1 off 1m Red fused lead
1 off 1m Blue fused lead
1 off 1m Brown fused lead
Operating & Maintenance Manual
Unit carry set case
9V battery

Optional accessories/spares

Proving Unit, Part No. 249-0001
Complete replacement output lead set, Part No. A249-0002
Carry Case, Part No. A249-0003
