Ultrasound Camera Ultra Cam LD500
In stock

Ultrasound Camera Ultra Cam LD500

SKU : LD500
MAKE : CS INSTRUMENTS
MODEL : LD500
WARRANTY : 1 Year
AVAILABILITY : IN STOCK

Lead Time : 2 Weeks

CS Instruments
AED 0.00 - AED 0.00
AED 0.00
AED 29,000.00
AED 29,000.00 - AED 29,000.00
AED 29,000.00
(Including VAT)

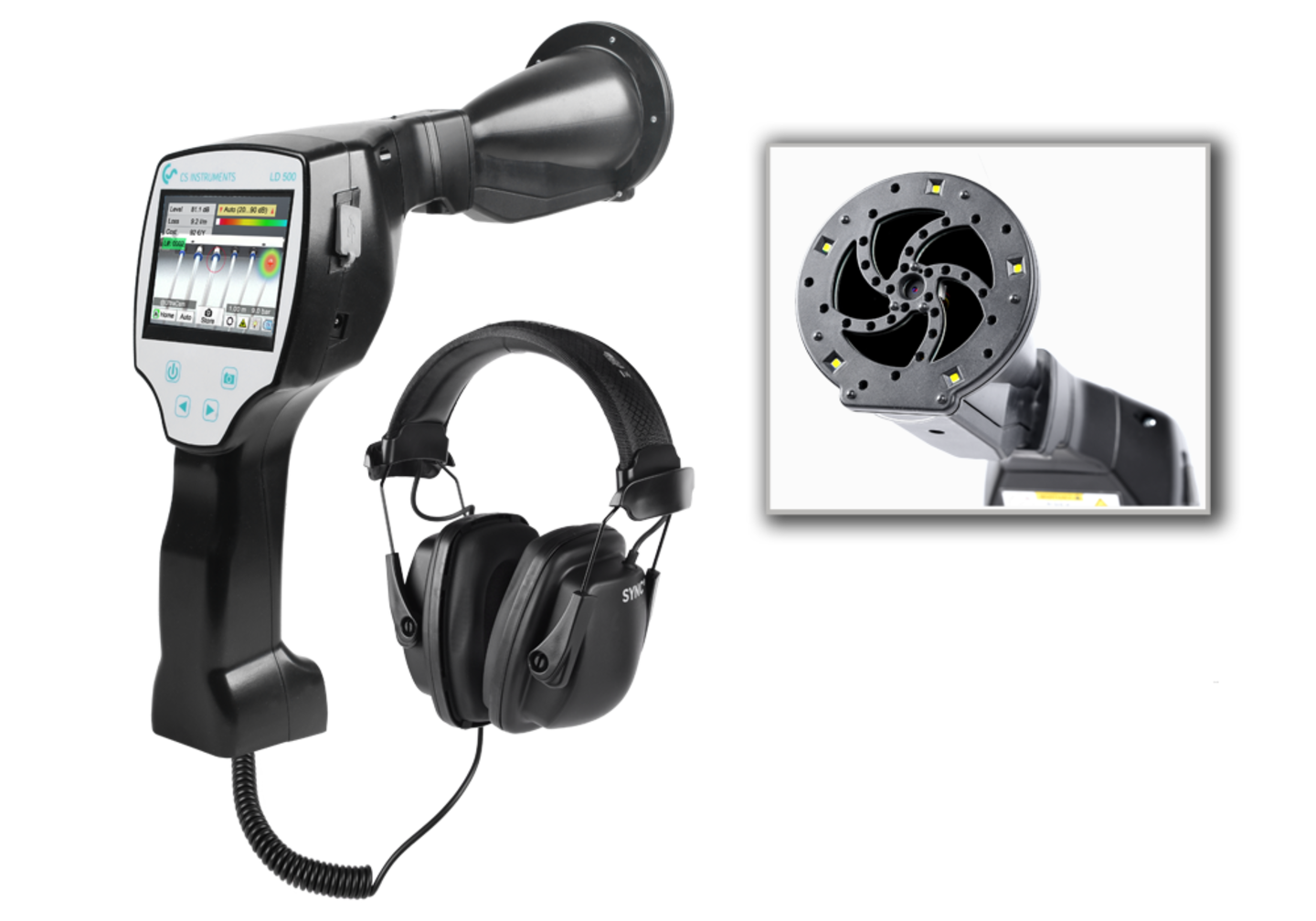

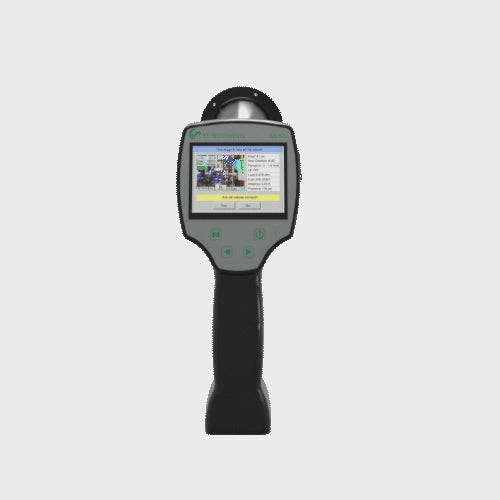

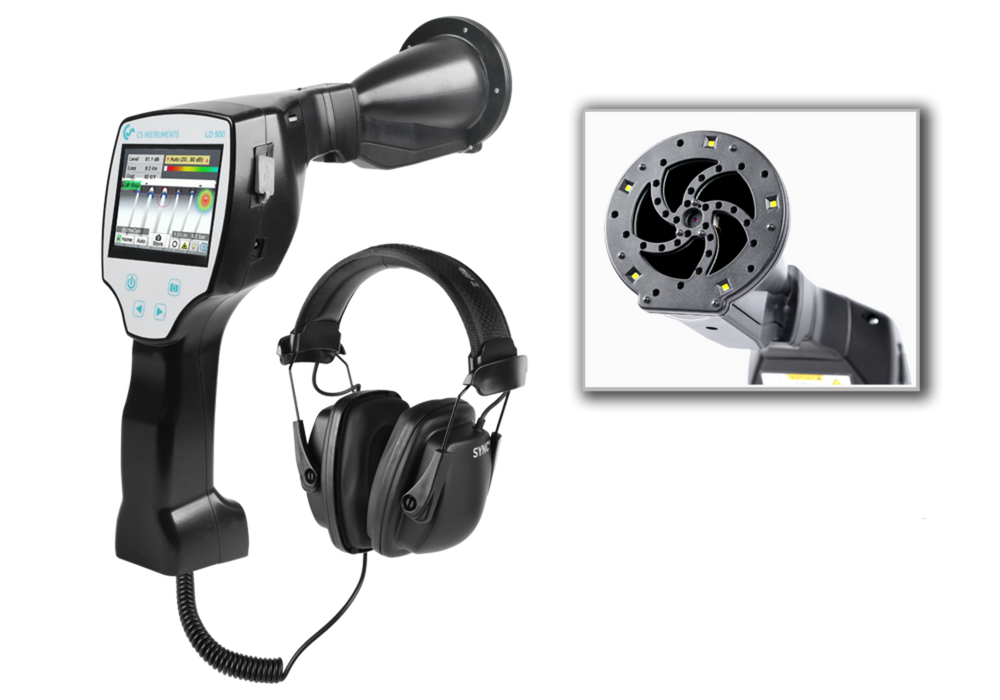

Ultrasound Camera Ultra Cam LD500

The UltraCam LD 500 is a high-performance, lightweight ultrasonic camera designed for fast, efficient, and intuitive compressed air and gas leak detection—even in loud production environments. Engineered with 30 MEMS microphones, an FPGA, and an advanced beam forming algorithm, it visualizes ultrasonic signals in real time, allowing you to instantly see and hear leaks on the built-in display without interrupting operations.

Key Features:

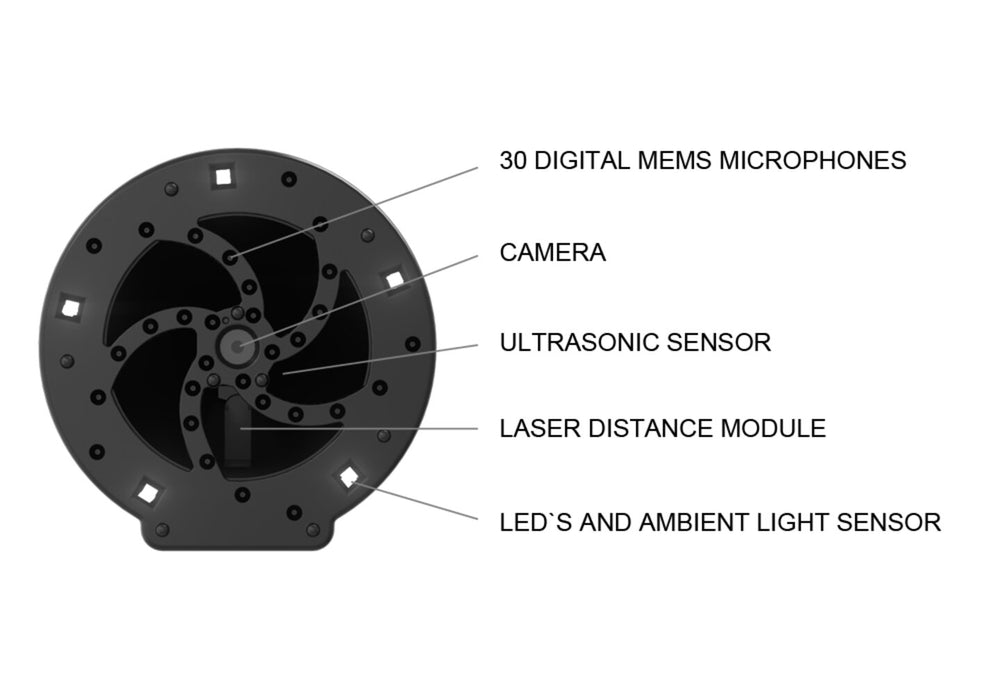

  • 30 Digital MEMS Microphones

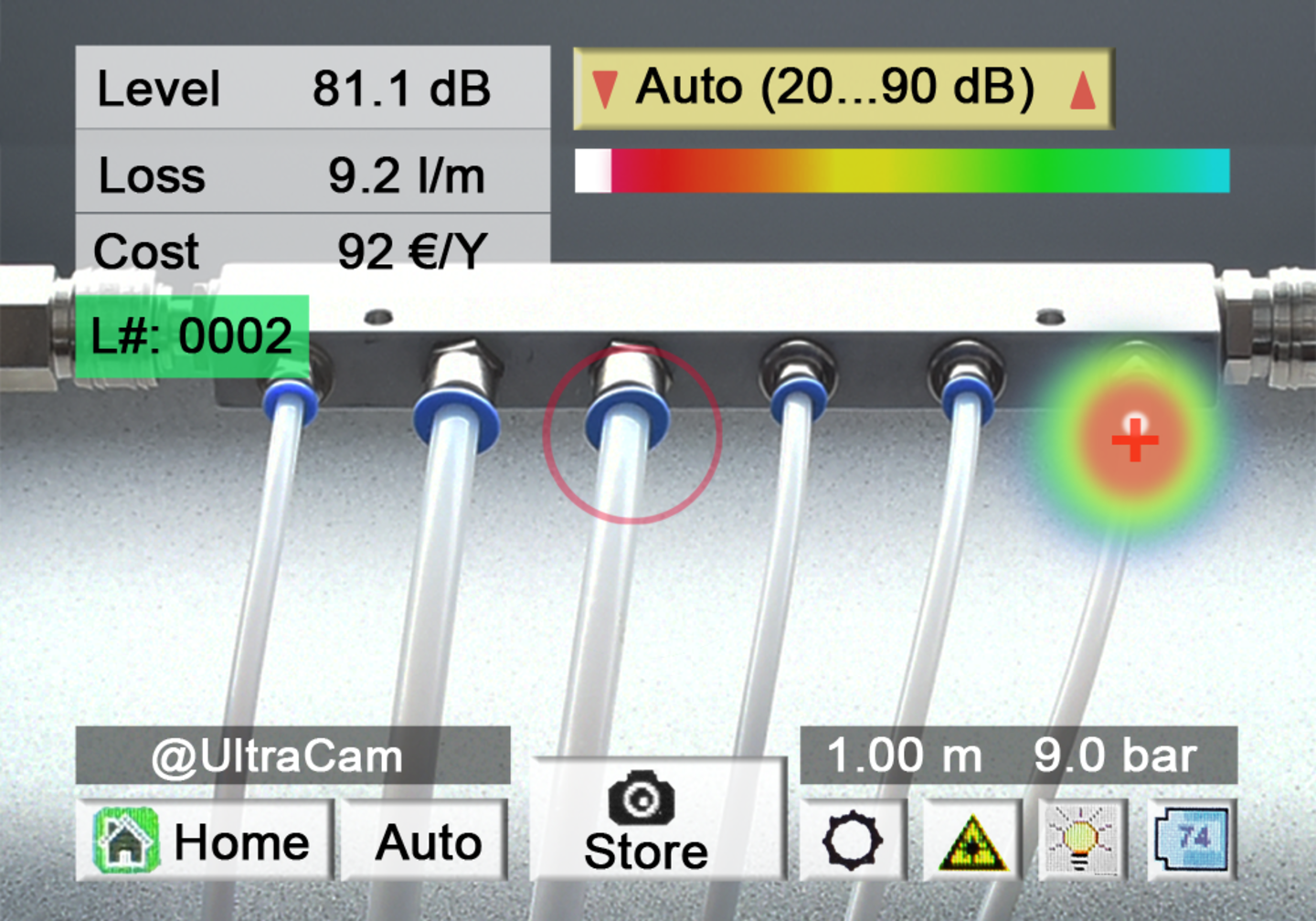

  • Real-Time Leak Visualisation

  • Makes Ultrasound Audible

  • Continuous Leak Detection Without Downtime

  • User-Friendly and Training-Free

  • Intelligent Lighting System

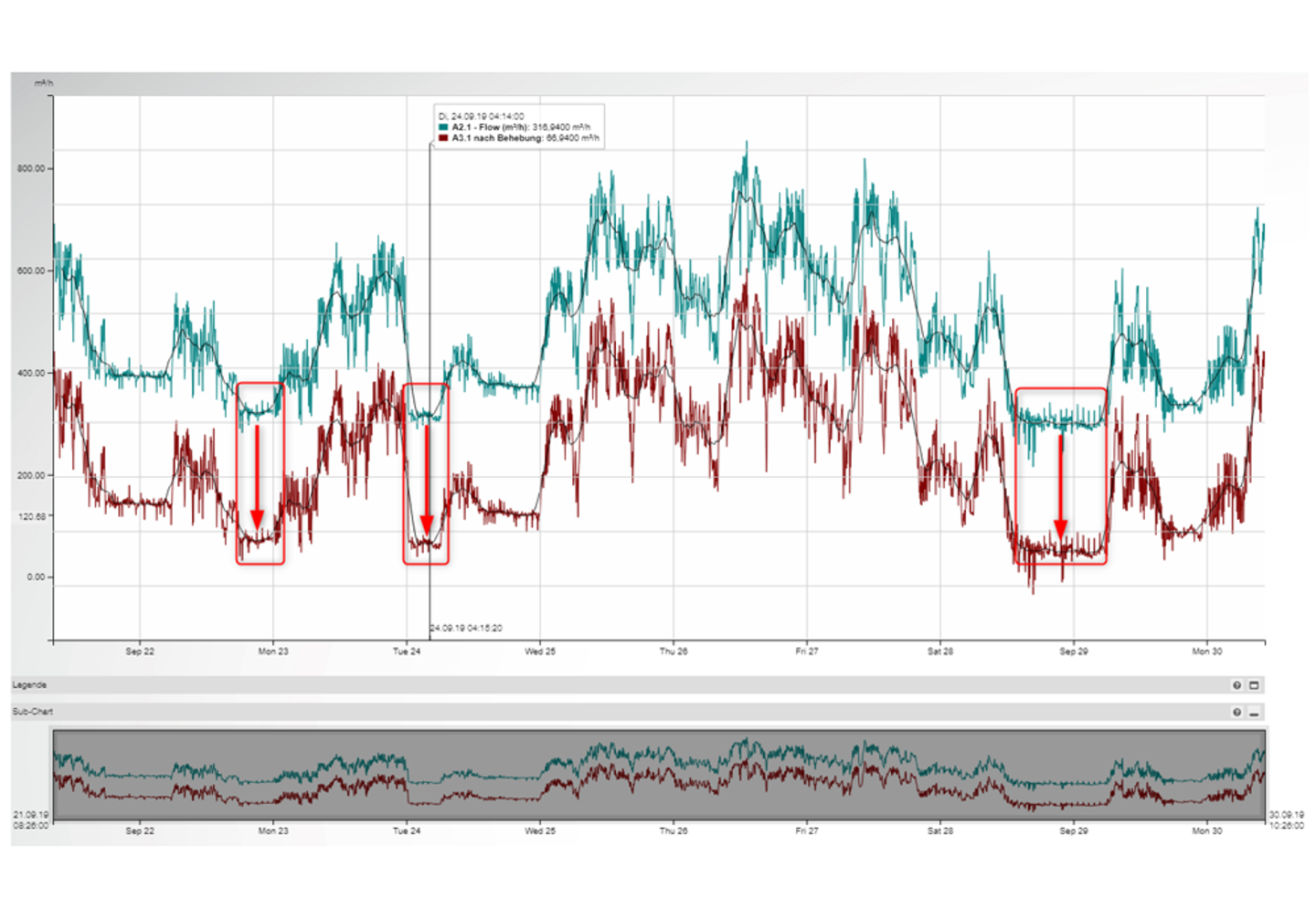

  • Leak Estimation & Cost Calculation

  • Lightweight & Ergonomic

  • Long Battery Life

  • Compatible with LD 500 Systems

Operating Frequency40 kHz ± 2 kHz
Connections3.5 mm stereo jack (headset), power socket for external charger
LaserWavelength: 630–660 nm, Output Power: < 1 mW (Laser Class 2)
Display3.5" touch screen
InterfaceUSB interface
Data Logger16 GB SD memory card (up to 100 million values)
Power SupplyInternal rechargeable Li-Ion batteries
Battery LifeApprox. 9 h (without UltraCam), 6 h (with UltraCam)
Charging TimeApprox. 4 hours
Operating Temperature-5°C to +50°C
EMC ComplianceDIN EN 61326
Auto LevelAutomatically adapts sensitivity and eliminates ambient noise
SensitivityMin. 0.1 l/min at 6 bar, 5 m (~€1/year compressed air cost)
Weight540 g (without UltraCam), 698 g (with UltraCam)
Measuring RangeSee external CS sensors
AccuracySee external CS sensors
Power Supply (Sensor Input)24 VDC ± 10%
Output Current (Sensor Input)120 mA (continuous operation)

  • Focus Tube with Focus Tip
    Enables pinpoint detection of even the smallest leaks in confined or hard-to-reach areas.

  • Noise-Proof Headset
    Allows leak detection in extremely loud environments by suppressing ambient noise and converting inaudible ultrasonic sounds into audible signals.

  • Holster with Shoulder Strap
    Designed for the LD 500, it ensures ergonomic handling and safe, comfortable use during extended inspections.

Datasheet_LD500 : Download
