Hand Arm Whole Body

Cirrus Hand-Arm & Whole-Body Vibration Kit CKVB213

يصنع : CIRRUS
نموذج : CKVB213
Cirrus Research Plc
AED 30,800.00 - AED 30,800.00
AED 30,800.00
AED 30,800.00 - AED 30,800.00
AED 30,800.00
(بما في ذلك ضريبة القيمة المضافة)

Cirrus Hand-Arm & Whole-Body Vibration Kit CKVB213

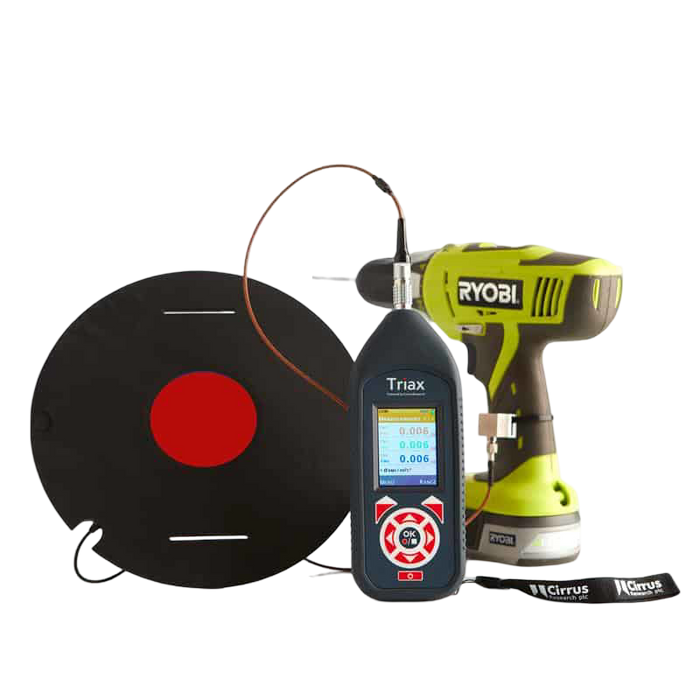

Cirrus Hand-Arm & Whole-Body Vibration Kit (CKVB213) is a combined human vibration measurement system that enables you to measure both hand-arm vibration (HAV) and whole-body vibration (WBV) using a single portable device. The kit includes the Triax Human Vibration Meter along with both a triaxial hand-arm accelerometer and a whole-body seatpad accelerometer sensor, so you can perform comprehensive vibration assessments across tools, vehicles, seats, and machinery.

Features:

  • Dual-Mode Vibration Measurement: Measures both hand-arm vibration (HAV) and whole-body vibration (WBV) with one kit.
  • Standards Compliance: Supports ISO 5349 for HAV and ISO 2631 for WBV.
  • Multiple Sensors Included: Comes with a triaxial hand-arm accelerometer and a seatpad WBV sensor.
  • Portable Handheld Meter: Rugged, field-ready vibration meter with clear OLED display.
  • Automatic Sensor Detection: The system automatically detects the connected sensor and switches modes.
  • Data Logging & Storage: Stores vibration measurement data for later review.
  • USB Connectivity: Easy data download to PC via USB.
  • Licence-Free Software: Includes Triax Analysis Pro for reporting and compliance analysis.

Measurement Types

Hand-Arm Vibration (HAV) & Whole-Body Vibration (WBV)

Standards Compliance

ISO 5349 (HAV), ISO 2631 (WBV), BS EN ISO 8041-1:2017

Axes

Triaxial (X, Y, Z)

Key Metrics

A(8) daily exposure, vector sum, peak acceleration, exposure points

Display

Colour OLED display

Memory

Stores >2,000 measurements

Connectivity

USB data transfer to PC

Software

Triax Analysis Pro (included)

Power Supply

4 × AA batteries (~12 hrs)

Included Sensors

Hand-Arm triaxial accelerometer + Whole-Body seatpad sensor (in CKVB213 kit)

Environmental Operating Range

–10 °C to +50 °C, up to 90 % RH non-condensing

Data-Sheet : Download

What is the CKVB213 Vibration Kit used for?

It is used to measure both hand-arm vibration (HAV) and whole-body vibration (WBV) to assess human exposure from tools, vehicles, seats, and machinery.

Which vibration standards does CKVB213 comply with?

It supports key international standards, including ISO 5349 for HAV and ISO 2631 for WBV, ensuring compliance with occupational health requirements.

What sensors are included in this combined kit?

The kit includes both a triaxial hand-arm accelerometer and a seatpad whole-body accelerometer sensor for comprehensive measurements.

Can this kit store and analyse data?

Yes — it logs vibration measurement data and allows export via USB to the included Triax Analysis Pro software for reporting and review.

Is CKVB213 easy to use in the field?

Yes — the meter is portable, rugged, and user-friendly, with automatic sensor detection to switch between HAV and WBV modes seamlessly.

What health risks does vibration monitoring help prevent?

Measuring vibration exposure helps prevent long-term conditions such as Hand-Arm Vibration Syndrome (HAVS) and musculoskeletal issues linked to prolonged whole-body vibration.

Cirrus Hand-Arm & Whole-Body Vibration Kit CKVB213

Cirrus Hand-Arm & Whole-Body Vibration Kit (CKVB213) is a combined human vibration measurement system that enables you to measure both hand-arm vibration (HAV) and whole-body vibration (WBV) using a single portable device. The kit includes the Triax Human Vibration Meter along with both a triaxial hand-arm accelerometer and a whole-body seatpad accelerometer sensor, so you can perform comprehensive vibration assessments across tools, vehicles, seats, and machinery.

Features:

  • Dual-Mode Vibration Measurement: Measures both hand-arm vibration (HAV) and whole-body vibration (WBV) with one kit.
  • Standards Compliance: Supports ISO 5349 for HAV and ISO 2631 for WBV.
  • Multiple Sensors Included: Comes with a triaxial hand-arm accelerometer and a seatpad WBV sensor.
  • Portable Handheld Meter: Rugged, field-ready vibration meter with clear OLED display.
  • Automatic Sensor Detection: The system automatically detects the connected sensor and switches modes.
  • Data Logging & Storage: Stores vibration measurement data for later review.
  • USB Connectivity: Easy data download to PC via USB.
  • Licence-Free Software: Includes Triax Analysis Pro for reporting and compliance analysis.

Measurement Types

Hand-Arm Vibration (HAV) & Whole-Body Vibration (WBV)

Standards Compliance

ISO 5349 (HAV), ISO 2631 (WBV), BS EN ISO 8041-1:2017

Axes

Triaxial (X, Y, Z)

Key Metrics

A(8) daily exposure, vector sum, peak acceleration, exposure points

Display

Colour OLED display

Memory

Stores >2,000 measurements

Connectivity

USB data transfer to PC

Software

Triax Analysis Pro (included)

Power Supply

4 × AA batteries (~12 hrs)

Included Sensors

Hand-Arm triaxial accelerometer + Whole-Body seatpad sensor (in CKVB213 kit)

Environmental Operating Range

–10 °C to +50 °C, up to 90 % RH non-condensing

Data-Sheet : Download

What is the CKVB213 Vibration Kit used for?

It is used to measure both hand-arm vibration (HAV) and whole-body vibration (WBV) to assess human exposure from tools, vehicles, seats, and machinery.

Which vibration standards does CKVB213 comply with?

It supports key international standards, including ISO 5349 for HAV and ISO 2631 for WBV, ensuring compliance with occupational health requirements.

What sensors are included in this combined kit?

The kit includes both a triaxial hand-arm accelerometer and a seatpad whole-body accelerometer sensor for comprehensive measurements.

Can this kit store and analyse data?

Yes — it logs vibration measurement data and allows export via USB to the included Triax Analysis Pro software for reporting and review.

Is CKVB213 easy to use in the field?

Yes — the meter is portable, rugged, and user-friendly, with automatic sensor detection to switch between HAV and WBV modes seamlessly.

What health risks does vibration monitoring help prevent?

Measuring vibration exposure helps prevent long-term conditions such as Hand-Arm Vibration Syndrome (HAVS) and musculoskeletal issues linked to prolonged whole-body vibration.
