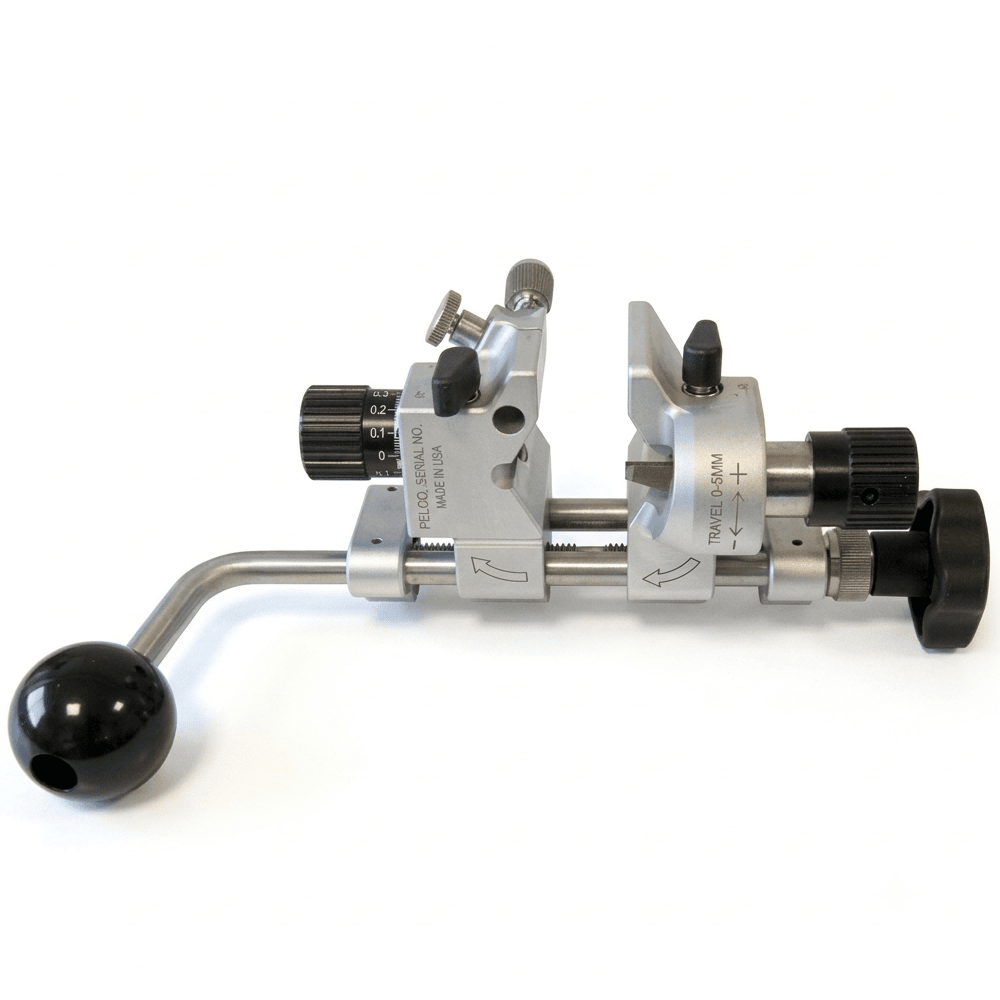

DERANCOURT POLY SCP Medium Voltage Cable Stripping Tool

رمز التخزين التعريفي : D-POLYSCP
يصنع : DERANCOURT
نموذج : POLY SCP
ضمان : 1 Year
Derancourt
AED 3,300.00 - AED 3,300.00
AED 3,300.00
AED 3,300.00 - AED 3,300.00
AED 3,300.00
(بما في ذلك ضريبة القيمة المضافة)

DERANCOURT POLY SCP Medium Voltage Cable Stripping Tool

POLY SCP is a 3-function professional cable preparation tool designed for stripping the external sheath, peelable semiconductor layer, and primary insulation of medium-voltage cables. It is suitable for cable preparation work on cables ranging from 25 mm² to 630 mm².

Key Features

  • 3-in-1 cable stripping tool
    • External sheath stripping
    • Peelable semiconductor removal
    • Primary insulation stripping
  • Cable size capacity: Ø17 mm to Ø60 mm
    (25 mm² to 630 mm²)
  • Maximum cutting depth:
    • External sheath & insulation: 12 mm
    • Peelable semiconductor: 1.2 mm
  • Suitable for cable insulation materials including:
    PE, XLPE, EPR, PVC, etc.
  • Treated aluminium body for durability.
  • Rapid steel blades for cutting and stripping.
  • Provides a chamfered end on the semiconductor layer.
  • 25–55 mm retractable stop for controlled stripping length.
  • Identification colour: Green
  • Weight: approximately 1.29 kg

Model / Reference

POLY SCP

Tool Type

3-function medium-voltage cable stripping tool

Application

Cable preparation for medium-voltage cables

Cable Capacity

25 mm² to 630 mm²

Cable Diameter

Ø17 mm to Ø60 mm

Functions

External sheath stripping, peelable semiconductor removal, primary insulation stripping

Maximum Cutting Depth – Sheath & Insulation

12 mm

Maximum Cutting Depth – Semiconductor

1.2 mm

Cable Materials

PE, XLPE, EPR, PVC, etc.

Semiconductor Finish

Chamfered end

Retractable Stop

25 mm to 55 mm

Body Material

Treated aluminium

Blade Material

Rapid steel

Identification Colour

Green

Dimensions

Approx. 99 × 125 × 259 mm

Weight

1.29 kg

Accessories

Replacement blades available for external sheath/insulation and peelable semiconductor

Country of Origin

France

POLYSCP-Datasheet : Download

1. What is the DERANCOURT POLY SCP used for?

It is a 3-function cable preparation tool used for stripping the external sheath, peelable semiconductor, and primary insulation of medium-voltage cables.

2. What cable sizes can the POLY SCP handle?

It can handle cables from 25 mm² to 630 mm², with a cable diameter range of approximately Ø17 mm to Ø60 mm.

3. What types of cable materials can it be used on?

It is suitable for various cable materials, including PE, XLPE, EPR, and PVC.

4. What is the maximum cutting depth?

The maximum cutting depth is:

  • 12 mm for external sheath and insulation
  • 1.2 mm for peelable semiconductor

5. What are the main features of the POLY SCP?

Key features include a treated aluminium body, rapid-steel blades, adjustable/retractable stop, and chamfering capability for the semiconductor layer.

6. What is the weight of the POLY SCP?

The tool weighs approximately 1.29 kg, making it suitable for professional cable preparation work.
